UniFi Device Bridge Pro (UDB-Pro)
- High-performance wireless-to-Ethernet client bridge
- Dual-band Wi-Fi with enhanced RF design
- Gigabit Ethernet output
- PoE-powered with flexible mounting options
- Fully managed through UniFi Network Application

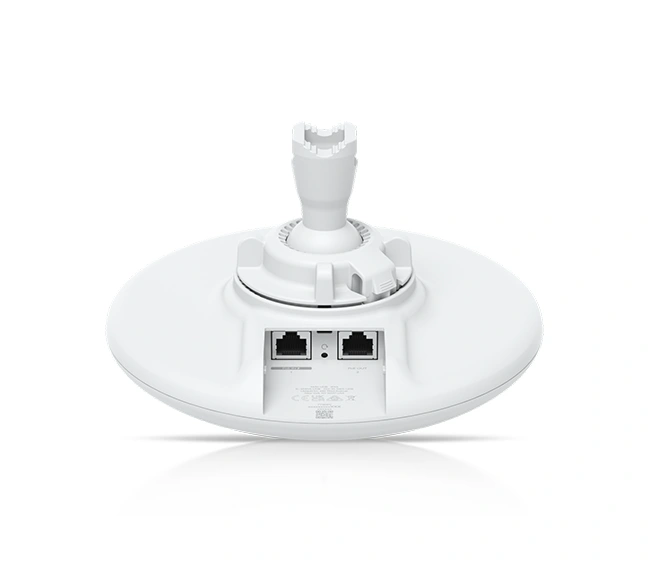

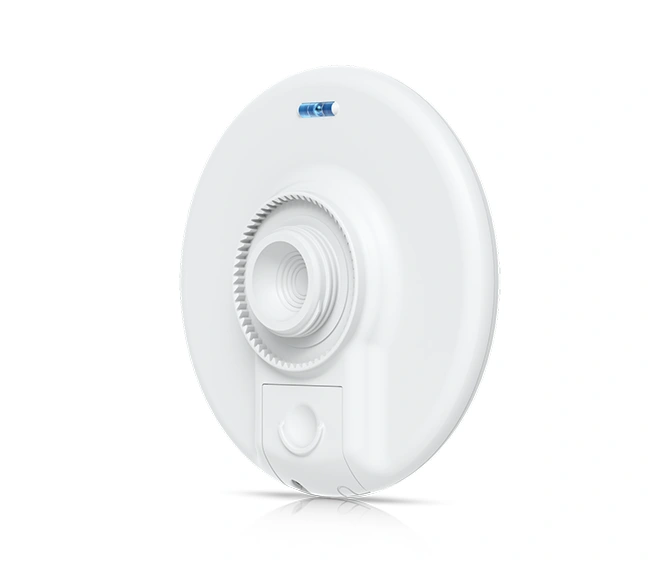

The UniFi Device Bridge Pro (UDB-Pro) is a high-performance wireless client bridge designed to connect Ethernet-based devices to a UniFi Wi-Fi network with enhanced throughput, range, and reliability. The UniFi Device Bridge Pro is optimized for demanding enterprise and outdoor deployments where stable, low-latency wireless-to-wired connectivity is required for critical devices such as cameras, access control systems, industrial equipment, and point-of-sale terminals.
Product Overview
The UniFi Device Bridge Pro operates as a dedicated Wi-Fi station that securely associates with UniFi access points and delivers network connectivity via its Ethernet interface. Compared to the standard UDB, the Pro variant offers improved RF performance, higher throughput capacity, and a more rugged design, all fully integrated into the UniFi ecosystem.
Wireless Standards & Performance
- Wireless standard: IEEE 802.11ac (Wi-Fi 5)
- Frequency bands:
- 2.4 GHz
- 5 GHz
- Optimized for long-range and high-stability client bridge links
- Enhanced throughput and lower latency compared to standard client bridges
Antenna & RF Design
- Integrated high-gain directional antennas
- Focused RF pattern for improved signal strength and reduced interference
- Designed for outdoor and extended-range connectivity
Ethernet & Networking
- 1 × Gigabit Ethernet port
- Transparent Layer 2 bridge operation
- Supports VLAN tagging and advanced network segmentation
Power & Installation
- Power method: Power over Ethernet (PoE)
- Single-cable installation for power and data
- Wall and pole mounting options supported
Management & Security
- Managed via UniFi Network Application
- Centralized configuration, monitoring, and firmware updates
- Enterprise-grade wireless security with WPA2/WPA3 support
- Detailed link quality and performance statistics
Physical & Environmental Design
- Outdoor-capable, weather-resistant enclosure
- Built for continuous 24/7 operation
- Suitable for industrial and enterprise environments
Typical Use Cases
- Wireless backhaul for UniFi Protect cameras
- Connecting remote access control and IoT devices
- Temporary or hard-to-wire enterprise equipment
Key Features
- High-performance wireless-to-Ethernet client bridge
- Dual-band Wi-Fi with enhanced RF design
- Gigabit Ethernet output
- PoE-powered with flexible mounting options
- Fully managed through UniFi Network Application
Meta Description
UniFi Device Bridge Pro (UDB-Pro) is a high-performance wireless client bridge with enhanced range and stability, enabling reliable PoE-powered Ethernet connectivity over Wi-Fi for enterprise and outdoor deployments.
