Ubiquiti LTU‑Lite 5 GHz is an outdoor 5 GHz LTU client radio with integrated 13 dBi antenna, 600 Mbps+ real throughput, passive 24 V PoE‑in, and rugged IPX5 casing—ideal for reliable PtMP CPE applications. Below are the detailed specifications for the Ubiquiti LTU‑Lite 5 GHz,

• Model: Ubiquiti LTU‑Lite (5 GHz PtMP CPE/Lite Client)

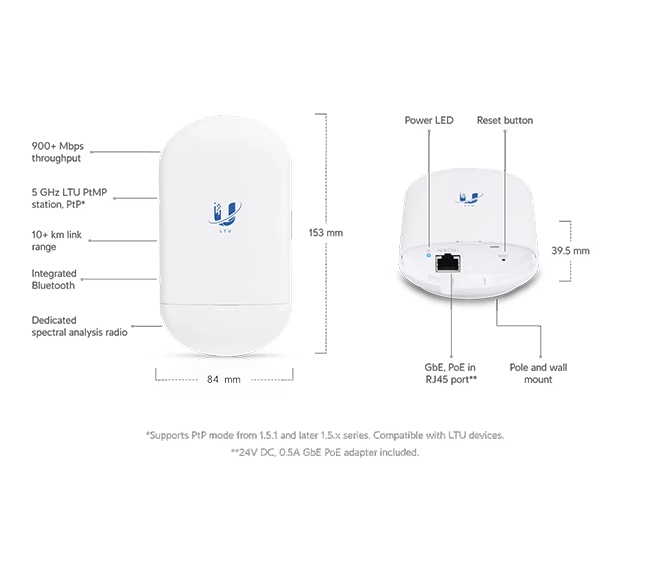

• Dimensions: 153 × 84 × 39.5 mm; Weight: ~250 g
• Enclosure: UV‑stabilized polycarbonate, IPX5 weatherproof rating, pole/wall mount
• Antenna Gain: 13 dBi (dual linear polarization); Beamwidth: ~45°
• Networking Interface: 1 × 10/100/1000 Mbps RJ45 with passive PoE-in (pairs 4,5+ / 7,8-) @ 22–27 V DC
• Power Consumption: ~8.5 W; included 24 V 0.5 A PoE adapter
• Operating Temp: –40 °C to +60 °C; Wind Survivability: 200 km/h
• Max TX Power: 22 dBm per chain; ESD Protection: ±24 kV

🔧 Ubiquiti LTU‑Lite 5 GHz RF & Software Features

• Protocols: Proprietary LTU mode, 10–50 MHz channel widths (future 100 MHz support via FW 2.3+)
• Modulation: 1024‑QAM uplift, with potential for 4096‑QAM in future updates
• Throughput: 600 Mbps+ typical, firmware‑driven potential >900 Mbps
• Modes Supported: PtMP CPE (bridge/router), PtP (with FW 1.5.1+), remote & local management via web, Bluetooth (UISP app), SNMP, SSH
• Advanced Features: Auto TX power regulation, TX/RX frequency splitting, remote spectral analysis, dynamic DNS, traffic utilities
• Certifications: CE, FCC, IC, NDAA‑compliant

The Ubiquiti LTU‑Lite 5 GHz is a compact, high-performance 5 GHz wireless CPE (Customer Premises Equipment) designed for scalable point-to-multipoint (PtMP) deployments using Ubiquiti’s proprietary LTU technology.

Equipped with an integrated 13 dBi directional antenna and a Gigabit Ethernet port, it supports throughput of 600+ Mbps and offers advanced frequency flexibility with channel widths from 10 MHz to 50 MHz (and up to 100 MHz in future firmware).

Its rugged IPX5-rated enclosure ensures reliable outdoor performance in harsh weather, while passive PoE support simplifies installation. The Ubiquiti LTU‑Lite 5 GHz is managed via the UISP platform and Bluetooth app, making it a user-friendly and cost-effective solution for ISPs and WISPs looking to deliver high-speed wireless connectivity over longer distances.
