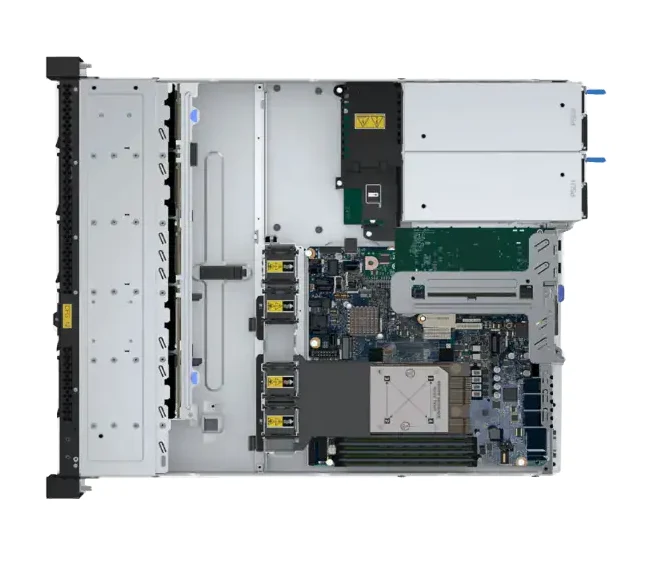

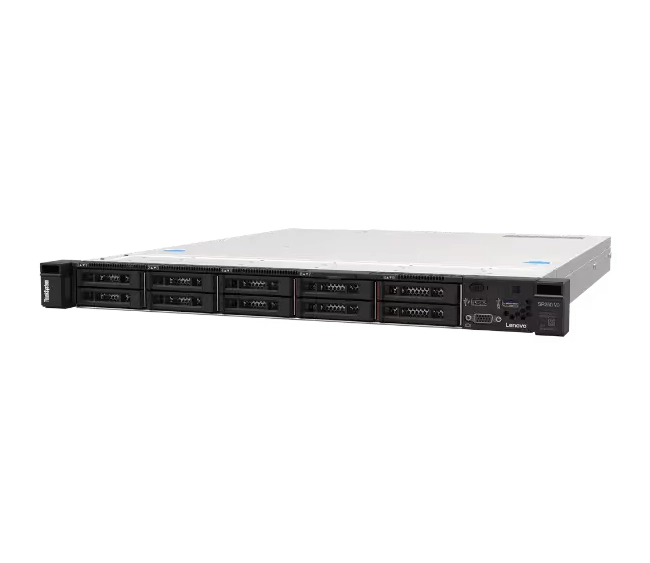

The Lenovo ThinkSystem SR250 V3 Rack Server is a compact 1U rack server engineered for high efficiency and reliability in limited-space environments. Powered by the latest Intel Xeon E-2400 processors, DDR5 ECC memory, and hot-swap Titanium power supplies, the SR250 V3 provides enterprise-class performance in a space-saving design.

With XClarity Controller 2 Platinum and support for up to 8x 2.5″ hot-swap drives, it is ideal for virtualization, file serving, and SMB workloads.

---

Lenovo SR250 V3 (Part Number: 7DCLA00LEA)

Processor

• Intel Xeon E-2434
• 4 cores / 8 threads
• Base clock: 3.4 GHz
• Cache: 8 MB Intel Smart Cache
• TDP: 55W

Memory

• Installed: 1x16GB DDR5 ECC UDIMM
• Speed: 4400 MT/s
• Slots: 4 DIMM slots
• Maximum capacity: 128GB

Storage

• 8x 2.5″ Hot-Swap drive bays
• Software RAID (SW RAID with Intel VROC)
• RAID Levels: 0, 1, 10 (basic software RAID)

RAID / Controller

• Software RAID only (no dedicated RAID card installed)

Networking

• Onboard Gigabit Ethernet
• Optional PCIe NICs for 10GbE or faster connectivity

Expansion

• PCIe Gen4/Gen5 slots for NICs, HBAs, or accelerators

Power Supply

• Hot-Swap 800W Titanium-rated PSU (96% efficiency)

Management

• Lenovo XClarity Controller 2 (XCC2) Platinum
• Advanced monitoring, diagnostics, and remote management

Other Features

• Rack rails included
• Compact 1U rack-mountable form factor

Warranty

• 3 Years

---

Lenovo SR250 V3 (Part Number: 7DCLA00NEA)

Processor

• Intel Xeon E-2436
• 6 cores / 12 threads
• Base clock: 2.9 GHz
• Cache: 12 MB Intel Smart Cache
• TDP: 65W

Memory

• Installed: 1x32GB DDR5 ECC UDIMM
• Speed: 4400 MT/s
• Expandable up to 128GB across 4 DIMM slots

Storage

• 8x 2.5″ Hot-Swap bays
• Enterprise-class RAID support

RAID / Controller

• Lenovo ThinkSystem 5350-8i Internal RAID Controller
• Interface: 12Gbps SAS/SATA
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Supports flash-backed cache for data protection

Networking

• Onboard Ethernet
• PCIe NIC expansion supported

Expansion

• PCIe Gen4/Gen5 slots

Power Supply

• 800W Hot-Swap Titanium PSU (96% efficiency)

Management

• Lenovo XClarity Controller 2 (XCC2) Platinum

Other Features

• Rack rails included
• 1U compact rack design

Warranty

• 3 Years

---

Lenovo SR250 V3 (Part Number: 7DCLA00TEA)

Processor

• Intel Xeon E-2468
• 8 cores / 16 threads
• Base clock: 2.6 GHz
• Cache: 16 MB Intel Smart Cache
• TDP: 65W

Memory

• Installed: 1x32GB DDR5 ECC UDIMM
• Speed: 4400 MT/s
• Expandable to 128GB (4 DIMM slots)

Storage

• 8x 2.5″ Hot-Swap drive bays

RAID / Controller

• Lenovo ThinkSystem 5350-8i Internal RAID Controller
• 12Gbps SAS/SATA
• RAID Levels: 0, 1, 5, 6, 10, 50, 60

Networking

• Standard onboard Ethernet
• Optional advanced networking adapters

Expansion

• PCIe Gen5/Gen4 slots

Power Supply

• 800W Titanium-rated PSU, hot-swap

Management

• Lenovo XClarity Controller 2 (XCC2) Platinum

Other Features

• Rack rails included for deployment
• Slim 1U form factor for dense rack environments

Warranty

• 3 Years

---

Key Features

• Rack-optimized 1U design for space-efficient deployments.
• Intel Xeon E-2400 processors with 4, 6, and 8 core options.
• DDR5 ECC memory up to 128GB across 4 DIMM slots.
• Flexible storage: 8x 2.5″ hot-swap bays.
• Choice of SW RAID or enterprise-grade 5350-8i RAID controller.
• Titanium-rated 800W PSU for maximum efficiency.
• XClarity Controller 2 Platinum for advanced remote management.
• Rails included for easy rack installation.

---

Meta Description

Lenovo ThinkSystem SR250 V3 Rack Server with Xeon E-2434, E-2436, and E-2468 CPUs, DDR5 ECC memory up to 128GB, 8x 2.5″ hot-swap drives, SW RAID or 5350-8i RAID, 800W Titanium PSU, and XCC2 Platinum management. Compact 1U enterprise-class server with rails included.
