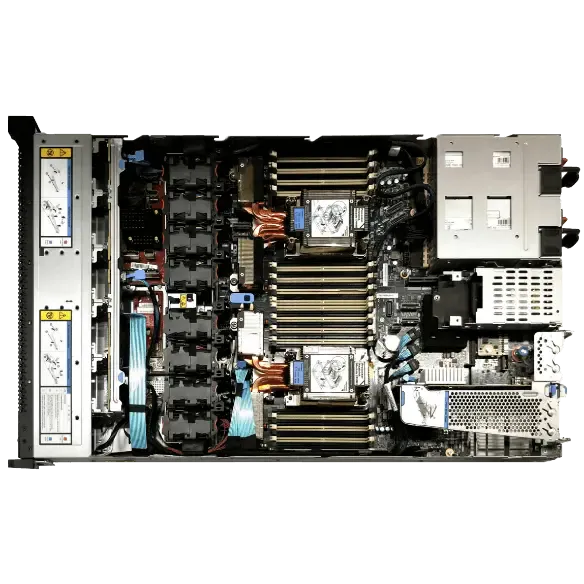

The Lenovo ThinkSystem SR630 V3 Rack Server delivers powerful compute density in a compact 1U form factor, making it ideal for businesses that need scalability, performance, and efficiency. With support for up to 2 sockets of Xeon Scalable CPUs (single-socket configs shown here), DDR5 ECC memory, and enterprise-class RAID options, it is widely used in data centers for virtualization, cloud hosting, databases, and enterprise applications.

---

Lenovo SR630 V3 (Part Number: 7D73A047EA)

Processor

• Intel Xeon Silver 4509Y
• 8 cores / 16 threads
• Base clock: 2.6 GHz
• Cache: 22.5 MB Intel Smart Cache
• TDP: 125W

Memory

• Installed: 1x32GB DDR5 RDIMM (ECC, Registered)
• Speed: 4800 MHz
• Rank: 1Rx4
• Expandable: Multiple TB depending on configuration (supports 32 DIMM slots in 2-socket models)

Storage

• 8x SAS/SATA drive bays
• RAID Controller: Lenovo 9350-8i Internal (12Gbps SAS/SATA)
• RAID Levels: 0, 1, 5, 6, 10, 50, 60

Cooling

• 6x Performance Fans

Power Supply

• 1x 1100W Titanium-rated PSU (96% efficiency, hot-swap)

Management

• Lenovo XClarity Controller 2 (XCC2) Platinum
• Advanced system monitoring, analytics, and remote management

Other Features

• Toolless V2 rails for simplified rack installation
• Enterprise-class reliability and efficiency

Warranty

• 3 Years

---

Lenovo SR630 V3 (Part Number: 7D73A03VEA)

Processor

• Intel Xeon Silver 4510
• 12 cores / 24 threads
• Base clock: 2.4 GHz
• Cache: 30 MB Intel Smart Cache
• TDP: 150W

Memory

• Installed: 1x32GB DDR5 RDIMM
• Speed: 4800 MHz
• Rank: 1Rx4
• Expandable to multi-terabyte configurations

Storage

• 8x SAS/SATA drive bays
• RAID Controller: Lenovo 9350-8i Internal (12Gbps SAS/SATA)
• RAID support for advanced redundancy and performance

Cooling

• 6x Performance Fans

Power Supply

• 1x 1100W Titanium PSU (hot-swap, 96% efficiency)

Management

• XClarity Controller 2 Platinum

Other Features

• Toolless V2 rails included
• Optimized for virtualization and compute-heavy tasks

Warranty

• 3 Years

---

Lenovo SR630 V3 (Part Number: 7D73A06LEA)

Processor

• Intel Xeon Silver 4514Y
• 16 cores / 32 threads
• Base clock: 2.0 GHz
• Cache: 30 MB Intel Smart Cache
• TDP: 150W

Memory

• Installed: 1x32GB DDR5 RDIMM
• Speed: 5600 MHz (higher bandwidth than Silver 4509Y/4510 configs)
• Rank: 1Rx4
• Maximum scalable capacity: Multi-terabyte with full DIMM population

Storage

• 8x SAS/SATA drive bays
• RAID Controller: Lenovo 9350-8i with 2GB cache module
• RAID Levels: 0, 1, 5, 6, 10, 50, 60
• Enhanced write-back cache for improved performance and data integrity

Cooling

• 6x Performance Fans

Power Supply

• 1x 1100W Titanium hot-swap PSU

Management

• XClarity Controller 2 (XCC2) Platinum

Other Features

• Toolless V2 rails for easy data center integration

Warranty

• 3 Years

---

Lenovo SR630 V3 (Part Number: 7D73A046EA)

Processor

• Intel Xeon Gold 6526Y
• 16 cores / 32 threads
• Base clock: 2.8 GHz
• Cache: 37.5 MB Intel Smart Cache
• TDP: 195W (higher power for greater compute performance)

Memory

• Installed: 1x32GB DDR5 RDIMM
• Speed: 5600 MHz
• Rank: 1Rx4
• Expandable to very large capacities for memory-intensive workloads

Storage

• 8x SAS/SATA drive bays
• RAID Controller: Lenovo 9350-8i Internal (12Gbps SAS/SATA)
• Advanced RAID redundancy supported

Cooling

• 6x Performance Fans

Power Supply

• 1x 1100W Titanium-rated PSU (hot-swap, 96% efficiency)

Management

• XClarity Controller 2 Platinum

Other Features

• Toolless V2 rails included
• Optimized for high-performance enterprise workloads like virtualization, AI, and databases

Warranty

• 3 Years

---

Key Features

• 1U enterprise rack server with Intel Xeon Silver & Gold Scalable CPUs.
• Core options from 8 to 16, with up to 32 threads per CPU.
• DDR5 RDIMM ECC memory up to 5600 MHz, scalable to multi-terabyte configurations.
• 8x SAS/SATA hot-swap storage bays with Lenovo 9350-8i RAID.
• Titanium-rated 1100W PSU with high efficiency and reliability.
• Six performance fans for optimized cooling in dense rack deployments.
• XClarity Controller 2 Platinum for advanced management and monitoring.
• Toolless V2 rails for simplified rack mounting.

---

Meta Description

Lenovo ThinkSystem SR630 V3 Rack Server with Xeon Silver 4509Y, 4510, 4514Y, and Xeon Gold 6526Y CPUs, DDR5 ECC memory up to 5600 MHz, 8 SAS/SATA bays, 9350-8i RAID, 1100W Titanium PSU, and XCC2 Platinum. High-performance 1U enterprise servers for data centers.
