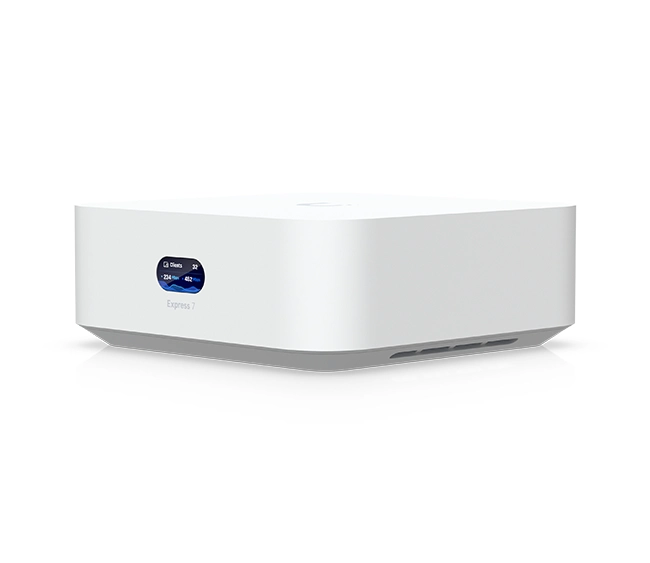

The Ubiquiti UniFi Express 7 (UX7) is a compact all-in-one UniFi OS gateway and Wi-Fi 7 access point designed for modern homes, small offices, and branch deployments. The Ubiquiti UniFi Express 7 combines next-generation wireless performance, integrated routing, and centralized UniFi management in a single minimalist device, delivering high-speed connectivity with simplified deployment.

Product Overview

The Ubiquiti UniFi Express 7 (UX7) functions as both a UniFi gateway and a Wi-Fi 7 access point, eliminating the need for separate hardware. Built on UniFi OS, it provides advanced networking, security features, and seamless management while supporting the latest Wi-Fi 7 (802.11be) standard for ultra-low latency and high throughput.

Processor & System Specifications

• Processor: Quad-core ARM-based CPU
• System architecture: 64-bit
• Operating system: UniFi OS
• Application support:
  • UniFi Network (integrated)
• Performance class: Optimized for small networks with high-speed wireless demand

Wireless Specifications

• Wi-Fi standard: Wi-Fi 7 (802.11be)
• Frequency bands:
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
• Wireless features:
  • Multi-Link Operation (MLO)
  • Improved spectral efficiency
  • Ultra-low latency communication
• Antenna design: Integrated internal antennas optimized for compact coverage

Wired Networking Interfaces

• Ethernet ports:
  • 1 × Gigabit Ethernet WAN
  • 1 × Gigabit Ethernet LAN
• Switching: Software-defined via UniFi Network
• VLAN support: Yes

Security & Networking Features

• Stateful firewall
• Intrusion Detection and Intrusion Prevention (IDS/IPS)
• Deep Packet Inspection (DPI)
• Advanced traffic management and application visibility
• Policy-based routing
• VPN support for site-to-site and remote access

UniFi Management & Monitoring

• Centralized management via UniFi OS
• Local and cloud-based administration
• Real-time network monitoring and analytics
• Automatic device adoption and provisioning
• Unified dashboard for wired and wireless devices

Power & Physical Specifications

• Power method: USB-C power input
• Cooling: Passive cooling (fanless design)
• Form factor: Compact desktop unit
• Chassis material: High-quality polycarbonate enclosure
• Color: White

Deployment Scenarios

• High-speed home networks
• Small offices and retail locations
• Remote branches and temporary sites
• Entry-level UniFi deployments with Wi-Fi 7 capability

Key Features

• All-in-one UniFi OS gateway and Wi-Fi 7 access point
• Tri-band Wi-Fi 7 with Multi-Link Operation support
• Integrated firewall, IDS/IPS, and DPI security
• Compact fanless design with USB-C power
• Seamless UniFi Network management

Meta Description

Ubiquiti UniFi Express 7 (UX7) is a compact UniFi OS gateway with integrated Wi-Fi 7 access point, offering tri-band wireless, advanced security, USB-C power, and centralized UniFi management for modern home and small business networks.

Datasheet
