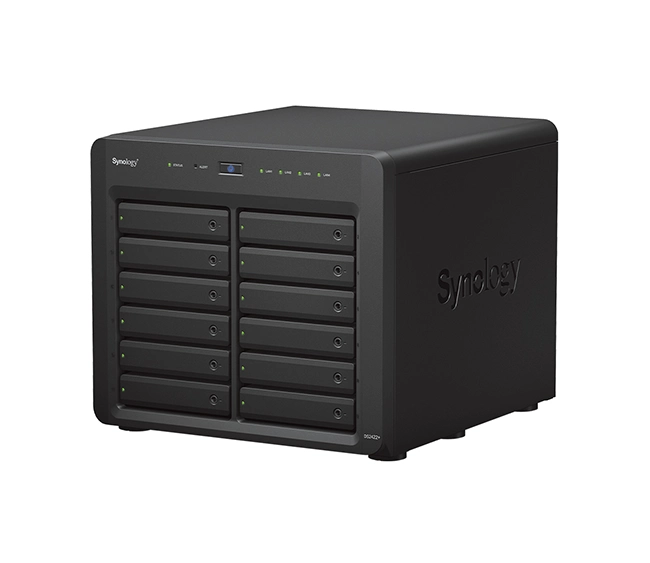

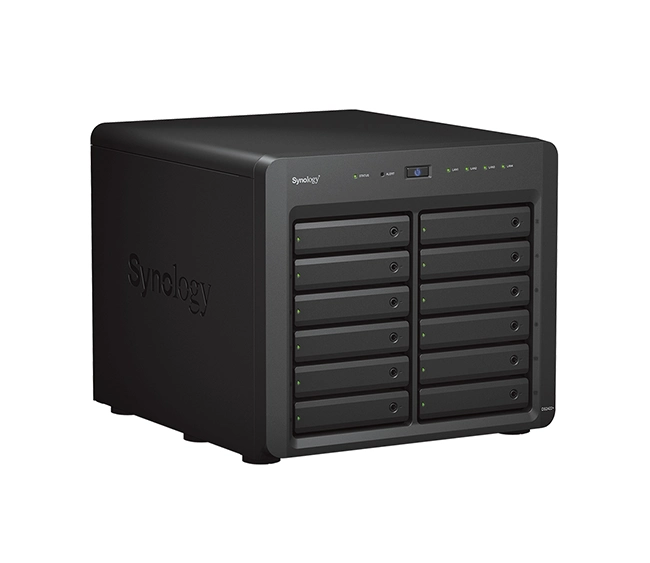

Synology DiskStation DS2422+ – 12-Bay NAS

The Synology DiskStation DS2422+ – 12-Bay NAS is a 12-bay scalable NAS built for growing businesses that need large-capacity storage, high performance, and enterprise-grade data protection. Powered by the AMD Ryzen V1500B quad-core 2.2 GHz processor and 4 GB DDR4 ECC memory (expandable to 32 GB), this NAS delivers excellent throughput for file sharing, backup, virtualization, and business applications.

With support for expansion units, PCIe upgrades, and advanced data management tools, the DS2422+ is an ideal solution for SMBs requiring reliable, scalable storage.

Processor

• Model: AMD Ryzen V1500B
• Architecture: 64-bit, quad-core
• Frequency: 2.2 GHz
• Encryption: Hardware AES-NI engine

Memory

• Installed Memory: 4 GB DDR4 ECC UDIMM
• Maximum Memory: 32 GB DDR4 ECC UDIMM (2 × 16 GB)

Storage

• Drive Bays: 12 × 3.5″/2.5″ SATA HDD/SSD (hot-swappable)
• Maximum Internal Capacity: ~216 TB (using 18 TB × 12 drives; varies by RAID type)
• Expansion Units: Supports 2 × DX1222 (up to 24 additional bays → max 36 drives)
• RAID Support: SHR, Basic, JBOD, RAID 0, 1, 5, 6, 10
• File Systems:
  • Internal: Btrfs, EXT4
  • External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT

Networking

• LAN Ports: 4 × Gigabit Ethernet RJ-45 (Link Aggregation & Failover supported)
• Optional Upgrade: PCIe Gen 3.0 slot for 10GbE/25GbE NIC or NVMe SSD cache card

Expansion & Connectivity

• USB Ports: 2 × USB 3.2 Gen 1
• eSATA Ports: 2 × for DX1222 expansion
• PCIe Slot: 1 × PCIe Gen 3.0 ×8 slot (x4 link)

Performance

• Sequential Read: ~2,200 MB/s (with 10GbE & NVMe cache)
• Sequential Write: ~1,300 MB/s (with 10GbE & NVMe cache)
• Encryption Performance: Hardware-accelerated AES-NI
• Virtualization Support: VMware vSphere, Microsoft Hyper-V, Citrix, OpenStack

Software & Features

• Operating System: Synology DiskStation Manager (DSM)
• Backup Solutions: Active Backup for Business, Hyper Backup, Snapshot Replication
• Data Protection: Btrfs self-healing, snapshots, and point-in-time recovery
• Business Tools: Synology Drive, Synology Office, Virtual Machine Manager
• Cloud Integration: Supports Synology C2, Google Drive, Dropbox, OneDrive, AWS S3
• Media Support: Plex Media Server, Synology Photos, Audio & Video Station
• Surveillance: Synology Surveillance Station with IP camera support

Power & Efficiency

• Power Supply: 550 W PSU
• Power Consumption:
  • ~21 W (HDD hibernation)
  • ~57–60 W (in operation, depending on drives)

Physical Specifications

• Dimensions (H × W × D): 270 × 300 × 340 mm
• Weight: ~9.5 kg (without drives)
• Cooling: 2 × 120 mm fans with smart/quiet operation

Environmental Conditions

• Operating Temperature: 0°C – 40°C
• Humidity: 5% – 95% RH (non-condensing)

Warranty & Support

• Warranty: 3 Years (extendable in some regions)

Typical Use Cases

• Enterprise-level file server and backup solution
• High-capacity storage for SMBs and data-heavy industries
• Virtualization-ready infrastructure with 10GbE expandability
• Centralized video surveillance and security management
• Scalable storage growing up to 36 drives with DX1222

Key Features

• 12-bay NAS with AMD Ryzen V1500B quad-core 2.2 GHz CPU
• 4 GB DDR4 ECC memory (expandable to 32 GB)
• PCIe slot for 10GbE/25GbE networking or NVMe SSD cache
• Expandable up to 36 drives with DX1222 expansion units
• Enterprise-ready storage with virtualization and backup solutions

Meta Description

Synology DiskStation DS2422+ 12-Bay NAS with AMD Ryzen V1500B CPU, 4 GB DDR4 ECC RAM (expandable to 32 GB), quad Gigabit LAN, PCIe 10GbE support, and expansion up to 36 drives. Perfect for SMBs and enterprise storage needs.
