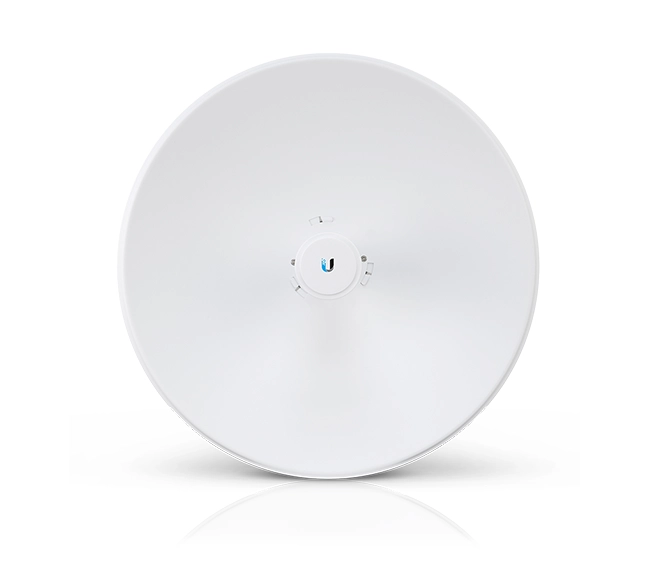

Ubiquiti airMAX PowerBeam 5AC

It delivers over 450 Mbps real throughput using airMAX ac technology. Housed in a rugged, weatherproof enclosure with ±24 kV ESD protection and tool-free mounting, it ensures reliable performance in harsh environments. The built-in management radio and advanced diagnostics tools like airView make setup, alignment, and monitoring seamless for professional-grade deployments.

Detailed Specifications for Ubiquiti PowerBeam 5AC Gen2 (PBE‑5AC‑Gen2)

The Ubiquiti airMAX PowerBeam 5AC is a high-performance 5 GHz airMAX ac bridge CPE, ideal for long-range Point-to-Point (PtP) or Point-to-MultiPoint (PtMP) installations.

🛠 Mechanical Specifications

• Dimensions: 420 × 420 × 230 mm
• Weight: 2.22 kg
• Enclosure: UV-stabilized plastic with powder-coated SPCC reflector
• Mounting: Pole-mount kit with ±20° elevation adjustment
• Wind Load and Survivability: 380 N at 200 km/h; survivable in up to 200 km/h winds
• Environmental Tolerance: –40 °C to +70 °C; 5–95% non-condensing humidity
• Compliance Tests: Salt fog, vibration, temperature shock, UV exposure, wind-driven rain
• ESD/EMP Protection: ±24 kV air/contact
• Certifications: CE, FCC, IC, RoHS; NDAA-compliant

🔌 Networking & Power

• Ethernet: 1 × 10/100/1000 Mbps RJ45
• Power Method: Passive 2-pair PoE (4,5+; 7,8 return)
• Included Adapter: 24 V, 0.5 A Gigabit PoE injector
• Power Consumption: 8.5 W max
• Voltage Range: 20–27 V DC

📡 Radio & Antenna

• Gain: 25 dBi directional dish
• InnerFeed Architecture: Radio integrated into feedhorn to eliminate cable loss
• Operating Frequency: 5150–5875 MHz; management radio at 2412–2472 MHz
• Channel Widths:
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
• Maximum TX Power: 24 dBm
• Real TCP/IP Throughput: >450 Mbps

🧠 Processor & Memory

• CPU: MIPS 74Kc
• RAM: 64 MB
• LEDs: Power, Ethernet, and 4 signal-strength indicators

🔧 Software & Features

• Operating System: airOS 8 with airMAX ac TDMA
• RF Analytics: Constellation diagrams, SNI/CINR histograms
• airView Spectrum Analyzer: Waveform, waterfall, ambient noise mapping
• Convenience Tools: airMagic channel automation, instant config validation
• Management: Dedicated Wi-Fi setup radio; UNMS/Bluetooth mobile configuration

✅ Conclusion

Ubiquiti PowerBeam 5AC Gen2 is a rugged 5 GHz airMAX ac bridge with 25 dBi antenna, >450 Mbps throughput, passive PoE, and advanced RF analytics—perfect for long-range outdoor links.
