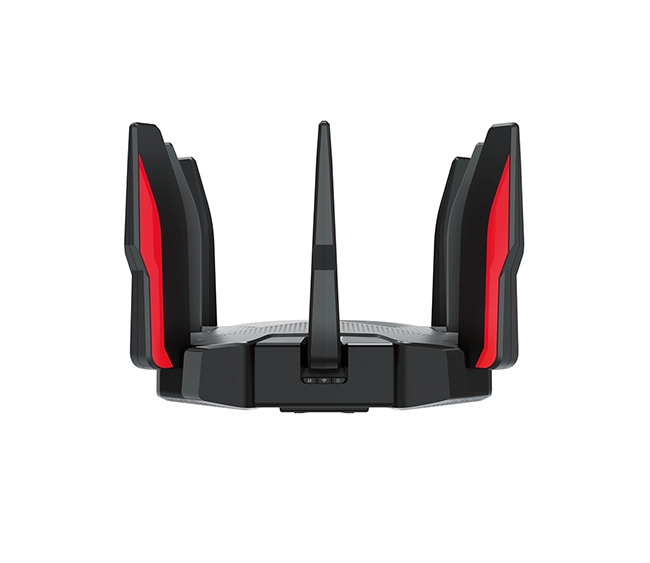

TP-Link AX6600 Tri-Band Wi-Fi 6 Gaming Router – Archer GX90

The TP-Link AX6600 Tri-Band Wi-Fi 6 Gaming Router – Archer GX90 is a premium AX6600 tri-band Wi-Fi 6 gaming router built for speed, low latency, and maximum coverage. With a dedicated gaming band offering ultra-fast 4.8 Gbps speeds, a 2.5 Gbps WAN/LAN port, and a powerful 1.5 GHz quad-core CPU, it’s designed to prioritize gaming traffic and deliver seamless performance even in device-heavy environments.

Hardware Specifications

• Model: Archer GX90 (AX6600)
• Processor: 1.5 GHz Quad-Core CPU
• Memory: 256 MB RAM, 128 MB Flash
• Ethernet Ports:
  • 1 × 2.5 Gbps WAN/LAN port
  • 1 × Gigabit WAN/LAN port
  • 3 × Gigabit LAN ports
• USB Ports:
  • 1 × USB 3.0
  • 1 × USB 2.0
• Antennas: 8 detachable high-gain external antennas
• Buttons: Power On/Off, Wi-Fi On/Off, WPS, LED On/Off, Reset
• Power Supply: 12V / 5A
• Dimensions: 212 × 212 × 51.8 mm (without antennas)
• Weight: Approx. 1.1 kg

Wireless Specifications

• Wi-Fi Standard: Wi-Fi 6 (802.11ax), backward compatible with 802.11a/b/g/n/ac
• Tri-Band Structure:
  • 2.4 GHz Band: up to 574 Mbps
  • 5 GHz Band 1 (Gaming Band): up to 4804 Mbps
  • 5 GHz Band 2: up to 1201 Mbps
• Total Combined Speed: Up to 6579 Mbps (AX6600)
• MU-MIMO: 4×4 support
• Beamforming: Supported
• OFDMA: Supported
• Device Capacity: Up to 100 connected devices

Gaming & Performance Features

• Game Accelerator: Prioritizes gaming traffic for reduced latency
• Game Statistics: Real-time latency, network status, and bandwidth usage
• Game Protector: Built-in security powered by Trend Micro (antivirus, intrusion prevention, etc.)

Security Features

• Encryption: WPA, WPA2, WPA3, WPA-Enterprise
• Firewall: SPI firewall, IP and MAC binding
• Malicious Content Filter: Included
• Device Isolation: Quarantine infected devices automatically

Network & Management

• WAN Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP
• VPN Support: OpenVPN, PPTP, L2TP (client and server)
• Guest Networks: Separate SSIDs for all 3 bands
• QoS: Application and device-based priority settings
• Parental Controls: Time limits, content filters, user profiles
• Dynamic DNS: TP-Link, DynDNS, No-IP
• Management Tools:
  • TP-Link Tether mobile app
  • Web-based GUI
  • TP-Link Cloud
• Mesh Support: Compatible with TP-Link OneMesh for seamless coverage
• USB Features: FTP server, Media server, Time Machine backup support

Environmental

• Operating Temperature: 0°C – 40°C
• Storage Temperature: -40°C – 70°C
• Operating Humidity: 10% – 90% non-condensing
• Certifications: CE, FCC, RoHS

In the Box

• TP-Link Archer GX90 Router
• 8 External Antennas
• Power Adapter
• Ethernet Cable
• Quick Installation Guide

Key Features

• Game Band – Tri-Band structure provides a 4.8 Gbps Game Band exclusive for your gaming rigs and bings pure immersion.
• Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive.
• Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
• Game Protector – Keep your accounts and documents safe with Homecare™ security system.
• 2.5 Gbps Wired Connection –  Unleash the potential of your next-level bandwidth network with a 2.5 Gbps WAN/LAN port.
• Powerful Processing – 1.5 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
• Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

Meta Description

TP-Link AX6600 Tri-Band Wi-Fi 6 Gaming Router – Archer GX90 is a tri-band Wi-Fi 6 gaming router with a 2.5 Gbps port, dedicated gaming band, built-in antivirus, and support for 100 devices—perfect for lag-free gaming and high-performance smart homes.
