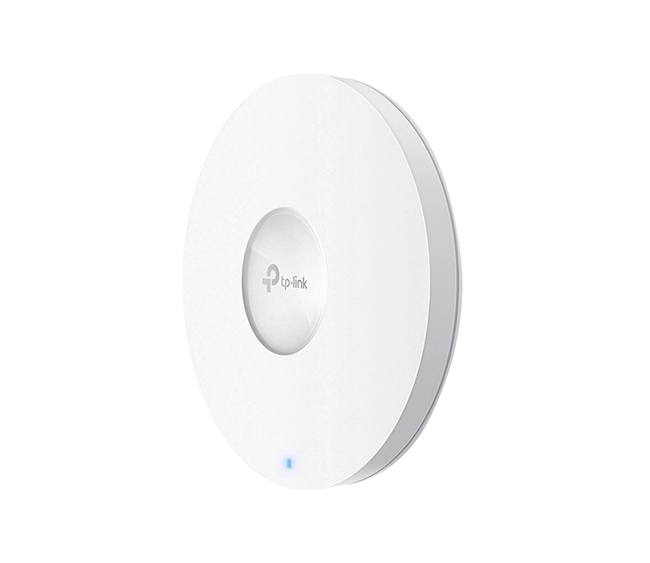

TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – EAP610
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
The TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – EAP610 is a high-performance WiFi 6 (802.11ax) ceiling-mount access point designed for high-density business environments such as hotels, schools, offices, and retail spaces. It delivers up to 1.8 Gbps combined wireless speeds, supports seamless roaming, and integrates with the Omada SDN platform for unified cloud management.
With advanced OFDMA and MU-MIMO technologies, it ensures faster speeds, increased capacity, and reduced latency for multiple connected devices.
Detailed Specifications
Wi-Fi Standards:
- IEEE 802.11ax/ac/n/g/b/a
- Dual-band AX1800 WiFi 6
Speed Performance:
- 2.4 GHz: Up to 574 Mbps
- 5 GHz: Up to 1201 Mbps
- Combined: Up to 1775 Mbps
Frequency Bands:
- Simultaneous 2.4 GHz and 5 GHz
Antenna Design:
- 4 internal omnidirectional antennas for optimized 360° ceiling coverage
Operation Modes:
- Access Point Mode
Ports:
- 1× Gigabit Ethernet Port (supports 802.3af PoE)
Coverage & Capacity:
- WiFi 6 technologies: OFDMA + MU-MIMO for better multi-user performance
- Beamforming for targeted, stronger connections
- Band steering for optimal device distribution
- Load balancing for stability in multi-AP setups
Security:
- WPA/WPA2/WPA3-Enterprise encryption
- Captive portal with customizable authentication for guests
- MAC address filtering
- SSID to VLAN mapping for network segmentation
Management Features:
- Omada SDN centralized cloud/local controller support
- Omada App for remote configuration and monitoring
- Supports up to 8 SSIDs per band
- Access scheduling and traffic shaping
Power Supply:
- 802.3af PoE support for flexible installation
- Optional DC adapter (sold separately)
Mounting Options:
- Ceiling or wall mount
Dimensions:
- 160 × 160 × 33.6 mm (6.3 × 6.3 × 1.3 in)
Key Features
- AX1800 dual-band WiFi 6 with OFDMA and MU-MIMO
- High-density performance for multiple devices
- Omada SDN and app-based management
- Gigabit PoE for easy deployment
- Enhanced security with WPA3 and captive portal
Meta Description
TP-Link AX1800 Ceiling Mount WiFi 6 Access Point – EAP610 with OFDMA, MU-MIMO, Gigabit PoE, Omada SDN cloud management, and WPA3 security — ideal for high-density enterprise Wi-Fi.
