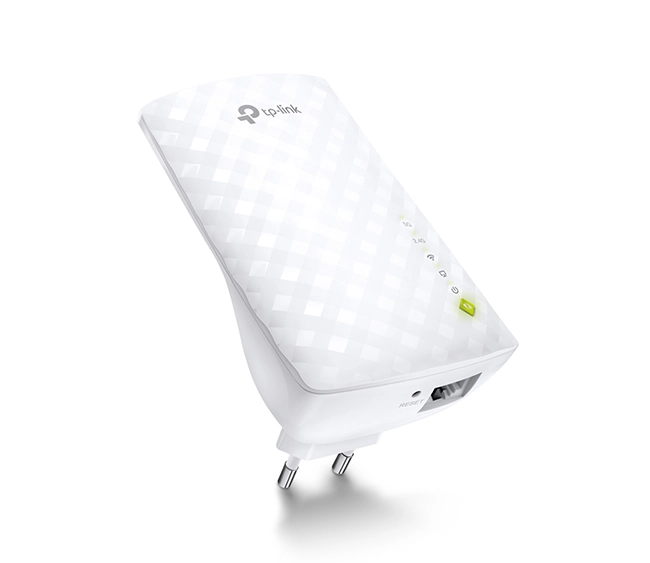

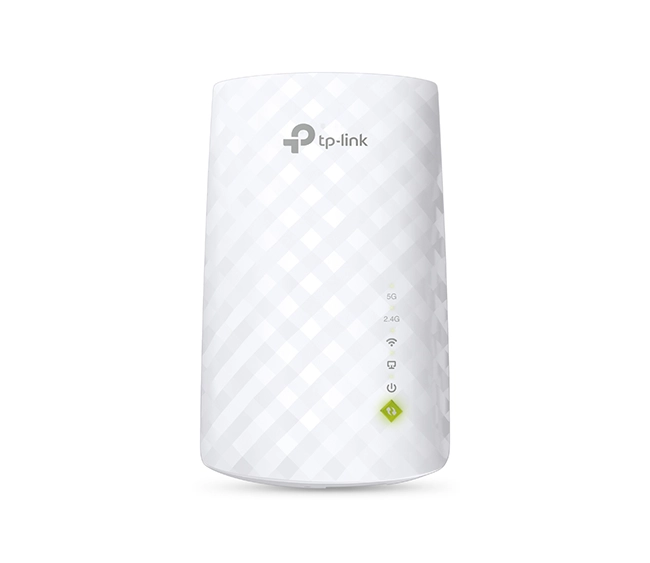

The TP-Link AC750 Mesh Wireless N Wall Plugged Range Extender – TL-RE200 is an AC750 dual-band Wi-Fi range extender designed to eliminate dead zones and expand wireless coverage. Supporting Mesh technology with compatible TP-Link OneMesh™ routers, it delivers seamless whole-home connectivity.

The device works with any standard Wi-Fi router, offers speeds up to 750Mbps, and features a compact wall-plug design for easy installation.

Detailed Specifications

Wireless Standards:

• IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a

Frequency Bands:

• 2.4GHz: up to 300Mbps
• 5GHz: up to 433Mbps

Total Speed:

• AC750 (733Mbps combined)

Antenna:

• 3 × internal antennas

Mesh Support:

• OneMesh™ compatible for seamless roaming with supported TP-Link routers

Transmit Power:

• < 20dBm (2.4GHz)
• < 23dBm (5GHz)

Ports:

• 1 × 10/100Mbps Ethernet port (RJ45)

Button Controls:

• WPS Button
• Reset Button

Functions:

• Range Extender Mode
• Access Point Mode (via Ethernet port)

Security:

• WPA-PSK / WPA2-PSK

Signal Strength Indicator:

• Smart LED indicators to help find optimal placement

Dimensions:

• 4.3 × 2.6 × 3.0 in (110 × 65.8 × 75.2 mm)

Power Supply:

• Direct wall-plug AC 100–240V, 50/60Hz

Operating Environment:

• Temperature: 0°C–40°C
• Humidity: 10%–90% non-condensing

Compatibility:

• Works with any standard wireless router or access point

Key Features

• Dual-band AC750 Wi-Fi speeds for HD streaming and gaming
• OneMesh™ support for seamless whole-home roaming
• Compact wall-plug design with easy WPS setup
• Smart LED indicator for optimal positioning
• Ethernet port for wired connections in AP mode

Meta Description

TP-Link AC750 Mesh Wireless N Wall Plugged Range Extender – TL-RE200 with OneMesh™ support, dual antennas, Ethernet port, and smart signal LED for extended Wi-Fi coverage.
