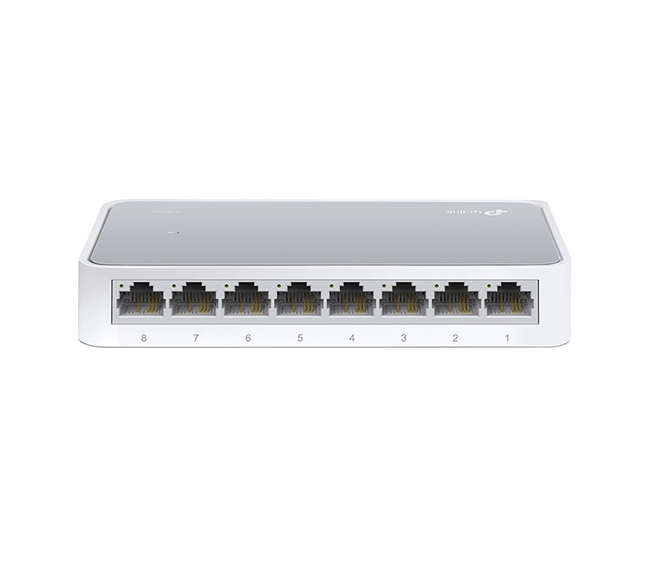

TP-Link 8-Port 10/100Mbps Desktop Switch (TL-SF1008D)

The TP-Link 8-Port 10/100Mbps Desktop Switch (TL-SF1008D) is a reliable and compact 8-port Fast Ethernet switch, designed for small office or home office (SOHO) environments. With support for Auto-MDI/MDIX, plug-and-play setup, and a fanless design for silent operation, this unmanaged switch offers an energy-efficient solution for expanding your wired network.

🧠 Hardware Specifications

• Model: TL-SF1008D
• Ports: 8 × 10/100 Mbps RJ45 Ethernet ports
• Auto-Negotiation: Yes
• Auto MDI/MDIX: Yes on all ports
• Switching Capacity: 1.6 Gbps
• Forwarding Rate: 1.19 Mpps
• MAC Address Table: 2K entries
• Buffer Memory: 768 KB
• Switching Method: Store-and-forward
• Flow Control: IEEE 802.3x full-duplex and backpressure for half-duplex

🌐 Networking Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (Flow Control)

⚡ Power & Energy Efficiency

• Power Supply: External power adapter (typically 5V DC, 0.6A)
• Max Power Consumption: ≤3.2 W
• Energy-Saving: Green Ethernet technology reduces power consumption depending on link status and cable length

📦 Physical & Environmental

• Dimensions: 134 mm × 79 mm × 22 mm
• Enclosure Material: Plastic
• Cooling: Fanless for silent performance
• Installation: Desktop
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH non-condensing
• Storage Humidity: 5%–90% RH non-condensing

📝 Meta Description

TP-Link 8-Port 10/100Mbps Desktop Switch (TL-SF1008D)is an 8-port Fast Ethernet unmanaged switch offering silent operation, plug-and-play functionality, energy-saving Green Ethernet technology, and a compact design—perfect for home or small office wired networking.
