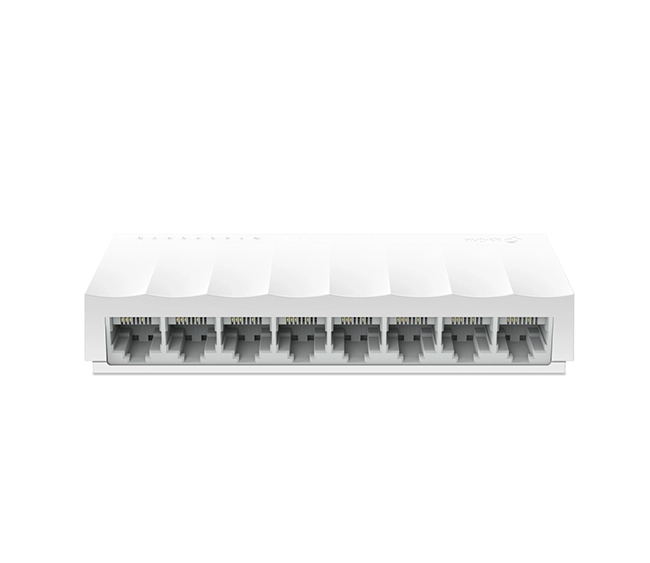

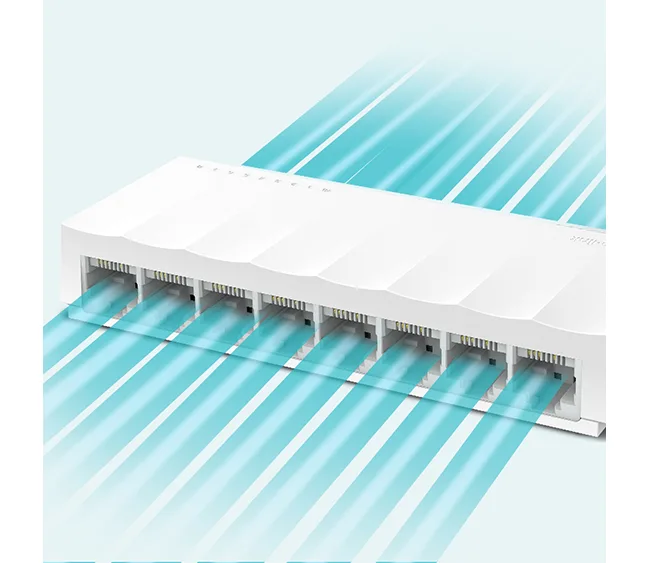

TP-Link 8-Port 10/100Mbps Desktop Switch (TL-LS1008)

The TP-Link 8-Port 10/100Mbps Desktop Switch (TL-LS1008) is an 8-port unmanaged Fast Ethernet switch designed to expand wired network connections in homes, small offices, and dorms. With plug-and-play setup, energy-efficient features, and silent operation through a fanless design, it offers reliable performance and convenience without requiring any configuration.

🧠 Hardware Specifications

• Model: TL-LS1008
• Port Count: 8 × 10/100 Mbps RJ45 Ethernet ports
• Auto-Negotiation: Yes
• Auto MDI/MDIX: Yes, all ports
• Switching Capacity: 1.6 Gbps
• Forwarding Rate: 1.19 Mpps
• MAC Address Table: 2K entries
• Switching Method: Store-and-forward
• Flow Control: IEEE 802.3x full-duplex and backpressure for half-duplex

🌐 Networking Standards

• IEEE 802.3 (10Base-T Ethernet)
• IEEE 802.3u (100Base-TX Fast Ethernet)
• IEEE 802.3x (Flow Control)

⚡ Power & Energy Efficiency

• Power Supply: External 5V / 0.6A
• Maximum Power Consumption: 2.64 W
• Power Saving: Supports Green Ethernet, reducing energy use based on link status and cable length

📦 Physical & Environmental

• Dimensions: 124.6 mm × 48.7 mm × 22.8 mm
• Enclosure Type: Plastic
• Mounting Options: Desktop
• Cooling: Fanless (silent operation)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10%–90% RH, non-condensing
• Storage Humidity: 5%–90% RH, non-condensing

📝 Meta Description

TP-Link TL-LS1008 is an 8-port Fast Ethernet switch with plug-and-play setup, energy-saving features, Auto-MDI/MDIX, and silent operation—ideal for home and small business wired network expansion.
