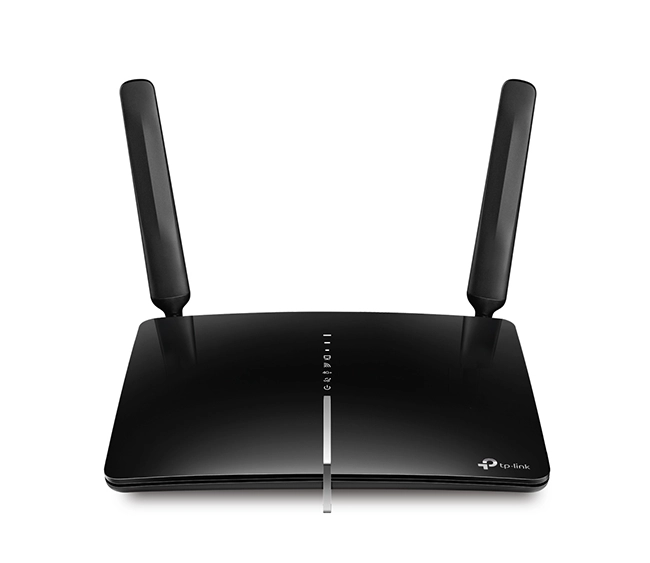

TP-Link 4G+ Cat6 AC1200 Wireless Gigabit Router – ARCHER MR600

The TP-Link 4G+ Cat6 AC1200 Wireless Gigabit Router – ARCHER MR600 is a high-performance 4G+ LTE router with Cat6 support for carrier aggregation, delivering blazing-fast mobile broadband speeds of up to 300 Mbps. Designed for areas with limited wired broadband access, it supports Gigabit Ethernet ports for wired connectivity and dual-band Wi-Fi with speeds up to 1200 Mbps.

The router combines easy plug-and-play setup with a micro-SIM slot and supports up to 64 wireless devices simultaneously.

Hardware Specifications

• Model: Archer MR600
• Ethernet Ports:
  • 1 × Gigabit LAN/WAN
  • 3 × Gigabit LAN
• SIM Card Slot: Micro-SIM
• Antennas: 2 detachable LTE antennas
• Buttons: Power On/Off, Wi-Fi On/Off, WPS/Reset
• Power Supply: 12V DC / 1.5A
• Dimensions: 202 × 141 × 33.6 mm

Wireless & LTE Specifications

• LTE Category: Cat6 with Carrier Aggregation
• LTE Download Speed: Up to 300 Mbps
• LTE Upload Speed: Up to 50 Mbps
• Supported LTE Bands:
  • FDD-LTE: B1/B3/B5/B7/B8/B20/B28
  • TDD-LTE: B38/B40/B41
• Carrier Aggregation Support: Yes
• 3G Bands: B1/B8
• Wi-Fi Standards:
  • 2.4GHz: 802.11b/g/n
  • 5GHz: 802.11a/n/ac
• Wi-Fi Speed:
  • 2.4GHz: Up to 300 Mbps
  • 5GHz: Up to 867 Mbps
• Total Wireless Throughput: AC1200
• MU-MIMO: Supported

Networking & Software Features

• Max Wireless Clients: Up to 64 devices
• Security:
  • WPA/WPA2, WPA-PSK/WPA2-PSK
  • SPI Firewall, IP/MAC Binding
  • DoS Protection, Access Control
• Guest Networks: Available for both 2.4GHz and 5GHz
• QoS: Traffic prioritization per device/application
• Parental Controls: Content filters and time scheduling
• WAN Connection Types:
  • Dynamic IP
  • Static IP
  • PPPoE
  • L2TP
  • PPTP
• VPN Support: PPTP, L2TP, OpenVPN (Passthrough and Server)
• Management Options:
  • Web UI
  • Mobile App (TP-Link Tether)
  • Cloud Remote Management
• Mesh Support: Compatible with OneMesh for seamless coverage
• Dynamic DNS: Supports TP-Link, DynDNS, and No-IP

Environmental & Certification

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 90% (non-condensing)
• Certifications: CE, RoHS

In the Box

• Archer MR600 Router
• 2 External LTE Antennas
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

Key Features

• TP-Link’s First 4G+ Router – supports 4G+ Cat6 to boost the data speeds of up to 300 Mbps^*
• Full Gigabit Ports – provides reliable wired connections for bandwidth-intensive devices such as game consoles and STB
• Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
• Better Signal for Connections Everywhere – enjoy stable and efficient connections to every device thanks to the two external LTE antennas
• Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection
• Supports TP-Link OneMesh^TM – co-works with TP-Link OneMesh products to create a flexible and cost-efficient Mesh network

Meta Description

TP-Link 4G+ Cat6 AC1200 Wireless Gigabit Router – ARCHER MR600 is a 4G+ Cat6 dual-band AC1200 gigabit router offering 300 Mbps LTE speeds, micro-SIM support, and connectivity for up to 64 devices—ideal for homes, businesses, and rural areas needing reliable mobile internet.
