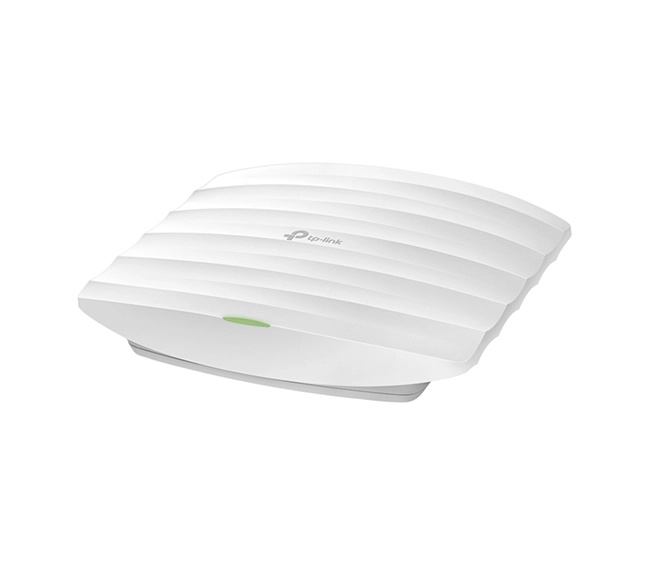

TP-Link 300Mbps Wireless N Ceiling Mount Access Point – EAP110

The TP-Link 300Mbps Wireless N Ceiling Mount Access Point – EAP110 is a cost-effective wireless N access point from TP-Link’s Omada business Wi-Fi series, designed for stable, wide-coverage wireless networks in offices, hotels, schools, and public areas. With its ceiling-mount design, passive PoE support, and centralized management capability, it delivers reliable performance while blending seamlessly into the environment.

Detailed Specifications

Wi-Fi Standard:

• IEEE 802.11n/g/b 2.4 GHz
• Wireless N

Speed Performance:

• 2.4 GHz: Up to 300 Mbps

Frequency Band:

• 2.4 GHz only

Antenna Design:

• 2× 4 dBi internal omnidirectional antennas
• Optimized for ceiling-mounted coverage

Operation Modes:

• Access Point Mode

Ports:

• 1× 10/100 Mbps Ethernet Port (supports passive PoE)

Coverage:

• Up to 100 meters indoors
• Ideal for small to medium-sized spaces

Security:

• Captive portal authentication for guest Wi-Fi
• WPA/WPA2 enterprise encryption
• MAC address filtering
• SSID to VLAN mapping for network segmentation

Management Features:

• Centralized management via Omada Controller software (or Omada Cloud Controller)
• Scheduling and access control
• Multiple SSIDs (up to 8)

Power Supply:

• Passive PoE (24V) or DC 9V/0.6A

Mounting Options:

• Ceiling or wall mount for optimal coverage and professional aesthetics

Dimensions:

• 7.5 × 7.5 × 1.9 inches (189 × 189 × 43 mm)

Key Features

• 300 Mbps wireless N for reliable everyday connectivity
• Omada centralized management support
• Captive portal for easy guest access control
• Passive PoE for flexible installation
• Ceiling-mount design for discreet deployment

Meta Description

TP-Link 300Mbps Wireless N Ceiling Mount Access Point – EAP110 with 300 Mbps 2.4 GHz Wi-Fi, passive PoE, captive portal, VLAN support, and Omada centralized management — ideal for businesses, hotels, and schools.

Datasheet
