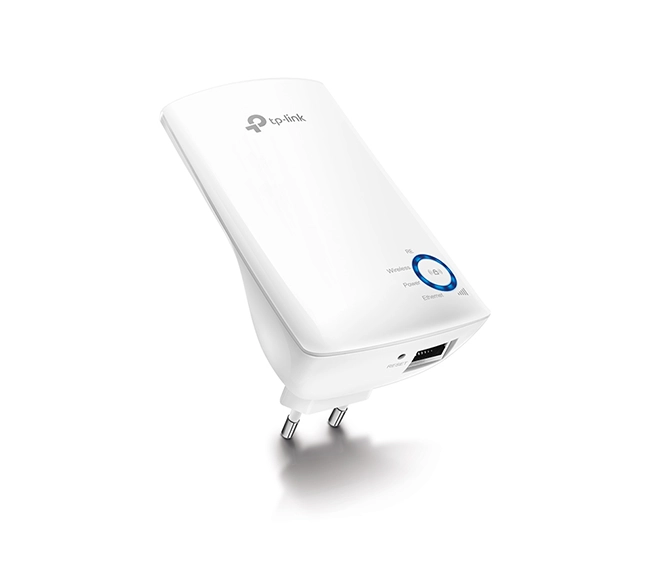

TP-Link 300Mbps Wi-Fi Range Extender – TL-WA850RE

The TP-Link 300Mbps Wi-Fi Range Extender – TL-WA850RE is a compact and easy-to-use Wi-Fi range extender designed to boost the coverage of your existing wireless network. Delivering up to 300Mbps on the 2.4GHz band, it ensures stable, lag-free connections for streaming, browsing, and online gaming.

Its wall-mounted design allows for quick installation, while the Intelligent Signal Indicator helps find the best placement for optimal coverage.

Detailed Specifications

Wireless Standards:

• IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency Band:

• 2.4GHz

Signal Rate:

• 300Mbps at 2.4GHz

Antenna:

• 2 × internal antennas

Transmit Power:

• < 20dBm (EIRP)

Ports:

• 1 × 10/100Mbps Ethernet port (RJ45)

Button Controls:

• RE (Range Extender) Button
• Reset Button

Functions:

• Range Extender Mode
• Access Point Mode (via Ethernet port)

Encryption:

• 64/128/152-bit WEP
• WPA-PSK/WPA2-PSK

Signal Strength Indicator:

• Intelligent LED indicators for optimal placement

Dimensions:

• 4.3 × 2.6 × 3.0 in (110.0 × 65.8 × 75.2 mm)

Power Supply:

• 100–240V AC, 50/60Hz

Operating Environment:

• Temperature: 0°C–40°C
• Humidity: 10%–90% non-condensing

Compatibility:

• Works with any standard Wi-Fi router or wireless access point

Key Features

• Expands wireless coverage up to 300Mbps on 2.4GHz
• Plug-and-play wall-mounted design
• Intelligent signal indicator for best placement
• Single Ethernet port to connect wired devices
• Supports secure wireless encryption with WEP/WPA/WPA2

Meta Description

TP-Link 300Mbps Wi-Fi Range Extender – TL-WA850RE boosts 2.4GHz coverage, features Ethernet port, intelligent signal indicator, and wall-mount plug-and-play design.

Datasheet
