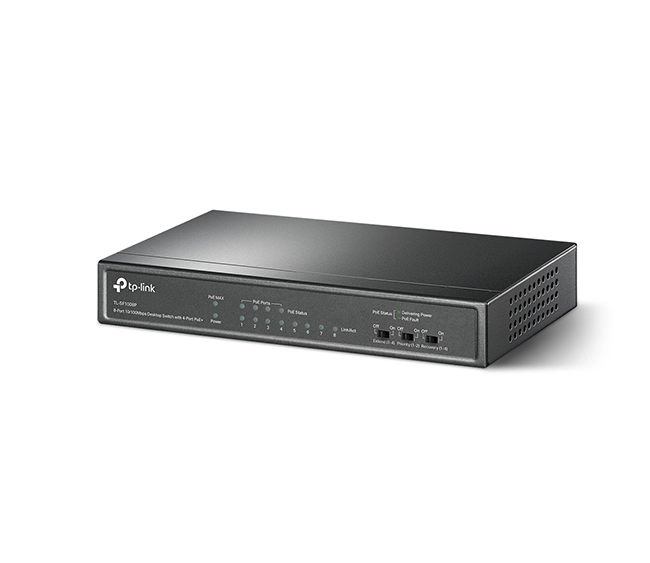

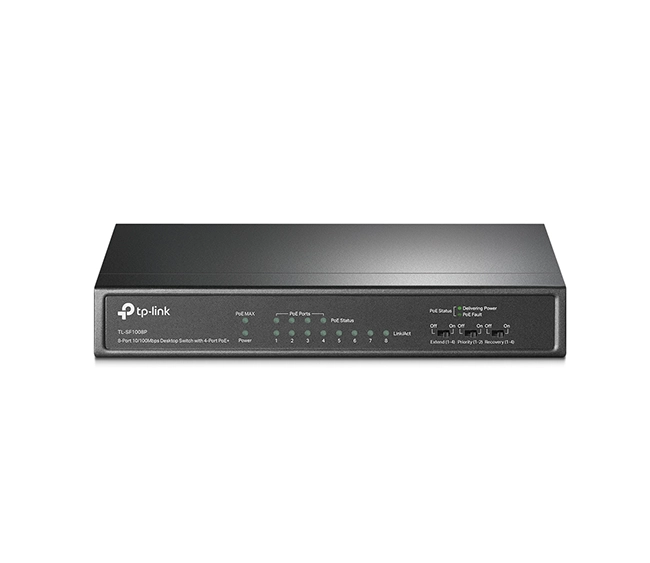

The TP-Link 8-Port 10/100Mbps Desktop Switch 4-Port PoE+(TL-SF1008P) is an 8-port 10/100 Mbps desktop switch with 4 Power over Ethernet (PoE+) ports. It is specifically designed for small and medium business networks and supports IEEE 802.3af/at standards, making it ideal for IP cameras, VoIP phones, and wireless access points. With plug-and-play functionality and intelligent power management, it ensures stable performance, even under full load, while maintaining silent fanless operation.

Hardware Specifications

• Ports:
  • 8 × 10/100 Mbps RJ45 ports
  • Ports 1–4 support PoE+ (IEEE 802.3af/at)
  • Ports 5–8 are standard data-only ports
• PoE Power Budget:
  • Up to 30 W per PoE port
  • Total power budget: 66 W
• Switching Capacity: 1.6 Gbps
• Forwarding Rate: 1.19 Mpps
• MAC Address Table: 2K entries
• Switching Method: Store-and-forward
• Flow Control:
  • IEEE 802.3x full-duplex
  • Backpressure for half-duplex

PoE Features

• Power Supply Type: External power adapter
• Input Voltage: 53–57 VDC
• PoE Management Features:
  • Priority Mode (ensures high-priority port power delivery)
  • Extend Mode (data and power up to 250 meters at 10 Mbps)
  • Intelligent power management (shuts off lower-priority ports if power budget exceeded)
  • Auto Recovery (automatically restarts PoE ports when the powered device becomes unresponsive)

Power Consumption

• Maximum: Approx. 66 W when PoE is fully utilized
• Without PoE Load: Approx. 3.2 W

Physical & Environmental

• Casing: Metal, fanless design
• Mounting Options: Desktop or wall-mount
• Dimensions: 171 × 98 × 27 mm
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Certifications: CE, FCC, RoHS

Short Key Features

• 8 x 10/100 Mbps ports with 4 PoE+ (IEEE 802.3af/at)
• Up to 30 W per PoE port, 66 W total budget
• Plug-and-play, no configuration required
• PoE Extend Mode supports up to 250 m transmission
• Priority Mode ensures stable power to critical devices
• Auto Recovery reboots non-responsive powered devices
• Silent fanless design in durable metal housing
• Ideal for IP surveillance, VoIP, and wireless networks
