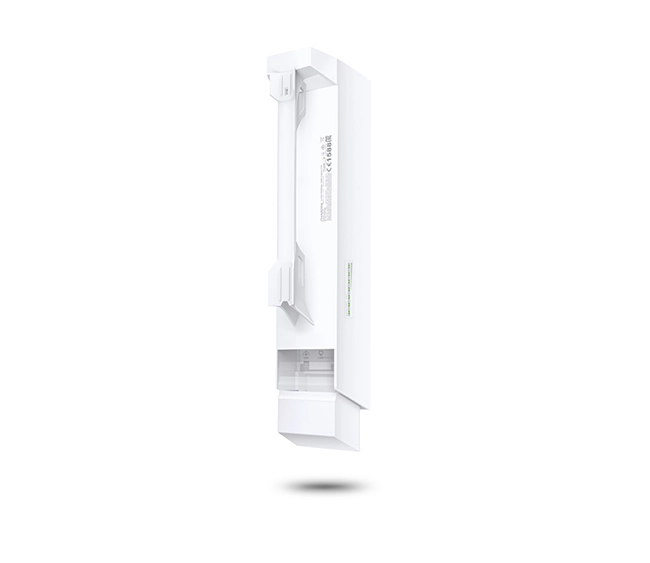

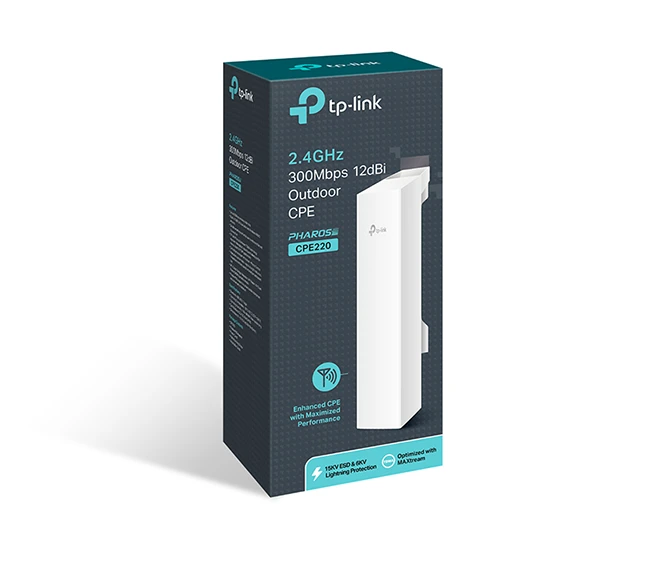

TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE – CPE220

The TP-Link 2.4GHz 300Mbps 12dBi Outdoor CPE – CPE220 is a high-gain, long-range outdoor wireless CPE designed for professional point-to-point (PtP) and point-to-multipoint (PtMP) connections in the 2.4 GHz band. Featuring a powerful 12 dBi directional antenna, 300 Mbps wireless speed, and up to 30 km+ transmission range in ideal conditions, it’s ideal for WISPs, farms, campuses, and outdoor surveillance.

Its rugged weatherproof design, high output power, and Pharos Control software make it a reliable solution for stable outdoor connectivity.

Detailed Specifications

Wireless Standards:

• IEEE 802.11b/g/n

Frequency Band:

• 2.4 GHz (2400–2483.5 MHz)

Wireless Speed:

• Up to 300 Mbps (802.11n, 40 MHz channel width)

Antenna:

• Built-in 12 dBi 2×2 MIMO directional antenna
• Beamwidth: H-Polarization 60°, V-Polarization 30°

Transmit Power:

• Adjustable up to 30 dBm (1000 mW)

Range Performance:

• Point-to-point distance: up to 13 km+ (line-of-sight)
• Point-to-multipoint: up to 30 km with optimized deployment

Processor & Memory:

• Qualcomm Atheros Enterprise 560 MHz CPU
• 64 MB DDR2 RAM, 8 MB Flash

Operation Modes:

• Access Point (AP)
• Client (AP Client/Station)
• Repeater
• AP Router (WISP)
• Bridge

Ethernet Port:

• 1× 10/100 Mbps Shielded Ethernet Port (Passive PoE in)

PoE Power Supply:

• Passive PoE adapter included (up to 60 meters)
• Power: 16–27V DC via PoE

Management & Software Features:

• Pharos Control centralized management
• Pharos MAXtream TDMA technology for optimized multi-user performance
• QoS for bandwidth control
• VLAN support
• Watchdog system for self-recovery

Security:

• WPA/WPA2-PSK and WPA/WPA2-Enterprise
• Wireless MAC filtering
• Access control lists

Enclosure & Durability:

• Outdoor weatherproof enclosure (IPX5-rated)
• -30°C to 70°C operating temperature range
• 15 kV ESD and 6 kV lightning protection

Dimensions & Weight:

• 224 × 79 × 60 mm
• Weight: ~320 g

Key Features

• 300 Mbps 2.4 GHz wireless speed for high-performance outdoor links
• High-gain 12 dBi directional antenna for extended coverage
• Up to 13–30 km wireless transmission range (environment dependent)
• Passive PoE for flexible installation up to 60 m
• Weatherproof housing with built-in ESD and lightning protection
• Multiple operation modes with centralized management via Pharos Control
