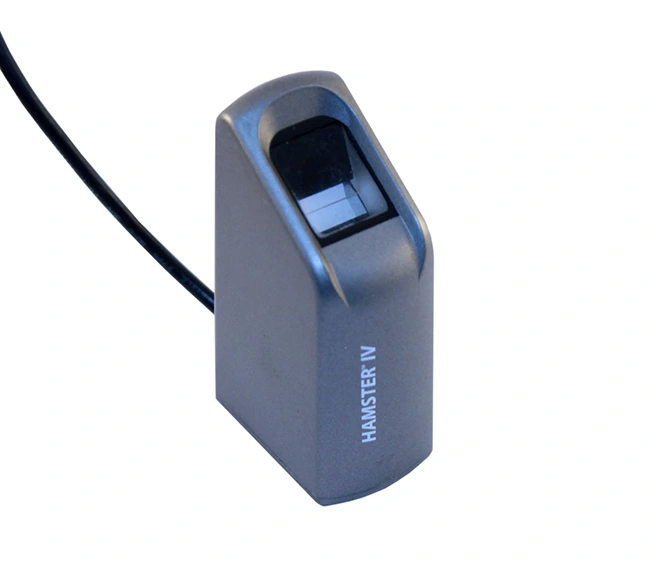

SecuGen Hamster IV (HSDU04P)

The SecuGen Hamster IV is a compact, FBI-certified fingerprint reader featuring a rugged 508 dpi optical sensor, SmartCapture™ and Auto-On™ technology for fast, reliable scans in challenging conditions. FIPS‑certified and compliant with global biometric standards, it offers USB connectivity, template encryption, and cross-platform SDK integration, making it ideal for secure access control and identity verification in enterprise and government environments.

Here are the very detailed specifications for the SecuGen Hamster IV fingerprint scanner

🔍 Device Overview

Model: SecuGen Hamster IV (HSDU04P)
Sensor: SDU04P contact optical sensor with SEIR technology

⚙️ Imaging & Sensor

• Resolution: 508 dpi
• Image Size: 258 × 336 pixels
• Platen Size: approx. 16.1 × 18.2 mm
• Effective Capture Area: approx. 12.9 × 16.8 mm
• Image Format: 8-bit grayscale (256 levels)
• Illumination: LED

🎯 Biometric Standards & Security

• Certified: FIPS 201 / PIV, FBI Mobile ID FAP 10, FBI IQS, NIST MINEX, STQC
• Compliant: ANSI INCITS 378, ISO/IEC 19794‑2 & ‑4, NIST SP 800‑76
• Anti-spoof: fake-finger rejection, latent-print removal
• Template encryption using SecuGen SDK

⏱️ Hamster IV Performance Features

• SmartCapture™: adaptive captures for challenging fingerprints
• Auto-On™: automatic finger detection
• Capture Speed: 0.2–0.8 sec (HSDU04P); up to 1.2 sec variant available

🔌 Interface & Power

• Connectivity: USB 1.1 Full‑Speed / USB 2.0 High‑Speed
• Power: 5 V via USB, max current ~150 mA

📏 Physical Characteristics

• Size (w/o stand): 27 × 40 × 73 mm
• Size (with stand): 53 × 73 × 84 mm
• Weight: 100 g (w/o stand), 165 g (with stand)
• Cable: approx. 1.5 m USB

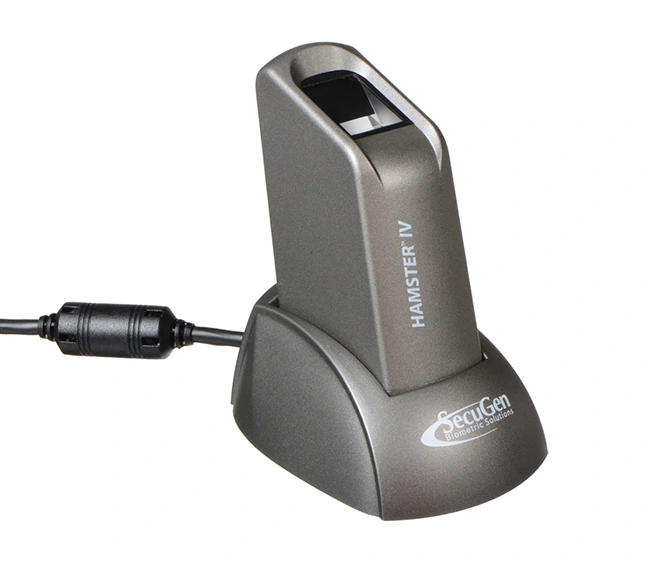

• Housing: rugged, scratch- & impact-resistant; removable weighted stand with finger guide

🌡️ Environmental Specs

• Operating Temp: –20 °C to +65 °C
• Humidity: ≤90% RH, non-condensing
• Certifications: FCC, CE, KC, RoHS, WHQL; GSA FIPS 201 APL; STQC for UID
• Ingress Protection: not rated (no IP spec)

🧩 Software & Platform Support

• Supported OS: Windows 7/8/8.1/10/11; Windows Server 2008+; Linux & Android (HSDU04P only)
• SDK Features: Auto‑On™, SmartCapture™, Device Recognition™, 360° rotation, multi-device handling via SecuGen SDK

🛡️ Certification & Warranty

• Compliant with FBI and international biometric standards
• Warranty: One-year limited manufacturer warranty

Meta Description

SecuGen Hamster IV USB fingerprint scanner – FBI & FIPS-certified, 508 dpi, SmartCapture™, Auto-On™, rugged build with stand, USB plug-and-play. Ideal for secure ID and access control.
