Ruijie RG-ES206GC-P, 6-Port Gigabit Smart Cloud Managed PoE Switch
- 6 × Gigabit Ports (4 PoE/PoE+)
- PoE Budget: 54W total, up to 30W per port
- Cloud Management: Ruijie Cloud & Mobile App
- Extended PoE Range: Up to 250 meters
- Auto Camera/NVR Detection
- Smart Loop Prevention & Port Isolation
- Fanless Compact Metal Design
- Easy VLAN Setup via Mobile App
The Ruijie RG-ES206GC-P is a 6-port Gigabit Layer 2 Smart PoE Switch, engineered to deliver power, performance, and cloud-based control for modern networks. Whether you’re managing an IP surveillance setup or powering a small business, this switch ensures seamless connectivity and smart management – all in a compact, fanless form factor.

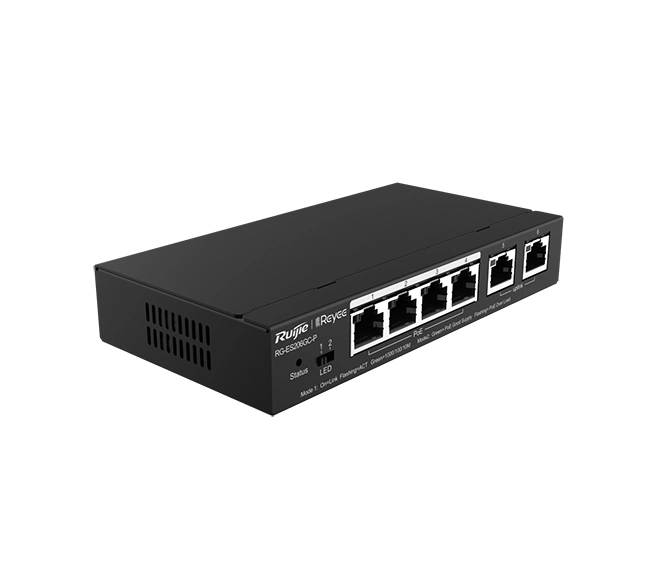

Ruijie RG-ES206GC-P
6-Port Gigabit Smart Cloud-Managed PoE Switch
🏢 Ideal For
- Small & Medium Businesses (SMBs)
- IP Surveillance Systems
- Retail, Clinics, Cafés, Education
- Remote Office Networks
⚙️ Key Features
- 6 × 10/100/1000 Mbps RJ45 Ports
- Ports 1–4 support IEEE 802.3af/at PoE/PoE+
- PoE Budget: 54W Total
- Up to 30W per PoE+ port
- Gigabit Switching Capacity: 12 Gbps
- MAC Table: 4K entries
- Packet Buffer: 1 Mbit
- Compact Metal Design: Fanless, silent, desktop-friendly
- Power Adapter Included: 54V / 1.1A
🌐 Smart Cloud Management
- Ruijie Cloud Management (Web + Mobile App)
- Zero-Touch Provisioning
- Remote Monitoring & Firmware Updates
- VLAN Configuration via Mobile App
- Loop Prevention & Auto Recovery
📸 Surveillance-Optimized
- Auto-recognition of IP Cameras & NVRs
- Extended PoE Range: Up to 250 meters
- Smart PoE Scheduling & Monitoring
- Port Isolation & Broadcast Storm Protection
🔁 Lifecycle Information
- 📅 End-of-Sale (Global): February 2024
- ✅ Recommended Replacement:
RG-ES206GS-P- Includes SFP Uplink Port for fiber
- Enhanced PoE performance
📐 Technical Specifications
| Item | Specification |
|---|---|
| Ports | 6 × Gigabit RJ45 (4 PoE/PoE+) |
| Switching Capacity | 12 Gbps |
| Forwarding Rate | 8.93 Mpps |
| PoE Budget | 54W total |
| Power Supply | 54V / 1.1A external adapter |
| Form Factor | Compact, Fanless Metal Case |
| Dimensions | 150 × 85 × 26 mm |
| Operating Temp | 0°C ~ 40°C |
| Weight | ~0.35 kg |
| Brand | Ruijie |
|---|
