MikroTik RBLHGG-60adkit (Wireless Wire Dish Kit)

Here are the very detailed specifications and overview for the MikroTik RBLHGG-60adkit (Wireless Wire Dish Kit) — a high-performance, pre-configured 60 GHz wireless point-to-point solution designed for gigabit-speed connectivity over long distances without interference.

Overview

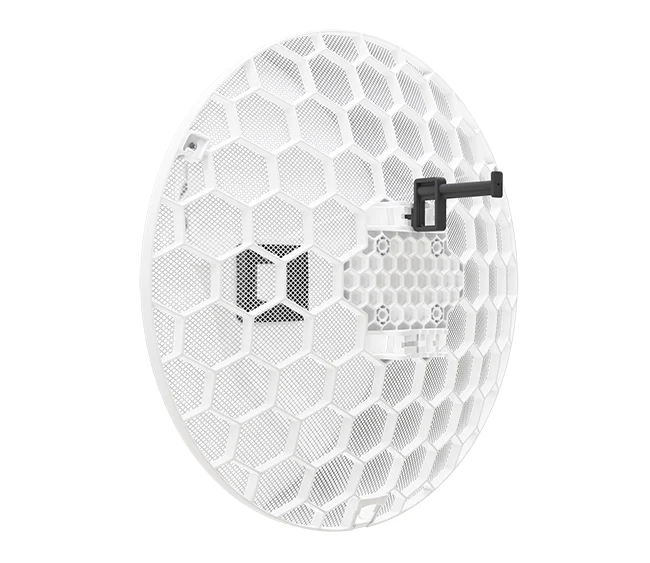

The RBLHGG-60adkit, also known as the Wireless Wire Dish Kit, includes two pre-paired LHG 60G units. Designed for professional-grade point-to-point (PtP) connections, this kit delivers fiber-like speeds up to 2 Gbps aggregate throughput over the 60 GHz band. It’s a plug-and-play solution optimized for long-range line-of-sight links, making it ideal for inter-building links, campus networking, or last-mile access in dense environments.

General Specifications

• Product Code: RBLHGG-60adkit
• Product Name: Wireless Wire Dish Kit
• CPU: Quad-core ARM Cortex-A7 (IPQ-4019)
• CPU Frequency: 716 MHz (auto downclocks to 448 MHz under low load)
• Architecture: ARM 32-bit
• RAM: 256 MB
• Storage: 16 MB Flash
• Operating System: RouterOS
• RouterOS License Level: Level 3
• Mean Time Between Failures (MTBF): ~200,000 hours at 25°C
• Operating Temperature Range: -40°C to +70°C
• Enclosure Rating: IP55 (weatherproof, outdoor-grade)
• Device Dimensions (each unit): Ø 391 mm × 222 mm
• Weight (full kit): Approximately 4.4 kg (includes mounting)

Wireless Specifications

• Wireless Standard: 802.11ad (60 GHz)
• Chipset: QCA6335
• Frequency Band: 60 GHz ISM band
• Maximum Aggregate Throughput: 2 Gbps (1 Gbps in each direction)
• Antenna Type: Integrated parabolic dish
• Antenna Gain: ~42 dBi
• Beamwidth: Approximately 3°
• Wireless Range:
  • Up to 1,500 meters (PtP, line-of-sight)
  • Up to 800 meters (PtMP deployment)
• Number of Chains: 1
• Security: WPA2 encryption, AES 128-bit

Interfaces & Power

• Ethernet Ports: 1 × Gigabit Ethernet (10/100/1000 Mbps) per unit
• PoE Input: 802.3af/at compliant & Passive PoE (12–57 V)
• Power Adapter: 24 V, 0.38 A (per unit)
• Power Consumption: Max 5 W (per unit)
• Cooling: Passive (fanless operation)
• LED Indicators: Signal, power, Ethernet status
• Reset Button: Yes

Included in the Kit

• 2 × LHG 60G units (pre-configured)
• 2 × Mounting kits with LHG alignment tools
• 2 × Gigabit PoE injectors
• 2 × 24 V power adapters
• Quick setup guide

Use Case Scenarios

• Building-to-building bridging without fiber
• High-speed campus or industrial wireless backbone
• Replacing leased lines or slow cable
• Rural deployments with fiber-like performance
• Secure, interference-free enterprise links

Meta Description:
MikroTik RBLHGG-60adkit Wireless Wire Dish Kit includes two pre-paired 60 GHz LHG 60G CPEs with integrated 42 dBi antennas, delivering up to 2 Gbps aggregate throughput, gigabit Ethernet, PoE support, and IP55 outdoor durability for long-range, high-speed point-to-point wireless links.
