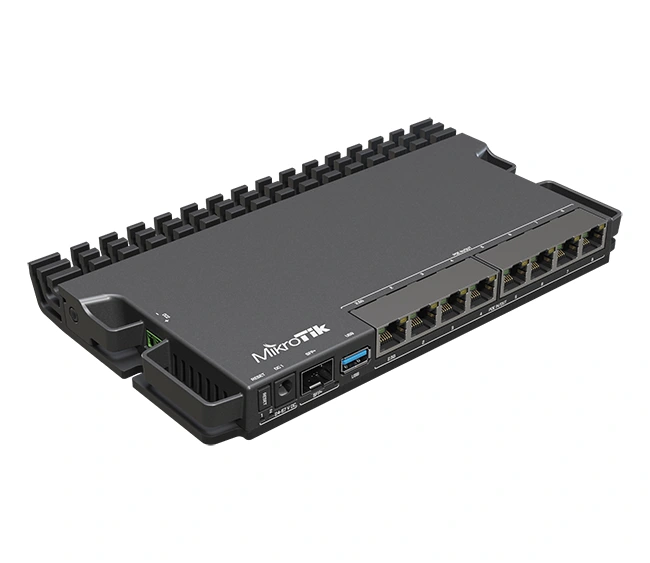

MikroTik RB5009UPr+S+IN Router

This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin (5.08mm 1x2pin) connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!

All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.

⚡ MikroTik RB5009UPr+S+IN

High Performance + Full PoE-Out Power in One Compact Router

🔧 Hardware Overview

The RB5009UPr+S+IN is a next-generation PoE router designed for high-density setups. It offers enterprise-level power with full Gigabit and SFP+ capabilities, all in a silent and compact form factor — perfect for edge deployments, ISPs, or power-distributed networks.

• CPU: Quad-Core ARM Cortex-A72 @ 1.4 GHz (AL32400)

• RAM: 1 GB DDR4

• Storage: 1 GB NAND

• Operating System: RouterOS (License Level 5)

• Form Factor: Desktop (rack-mountable with optional accessories)

• Case: Passive-cooled, all-metal enclosure

• Dimensions: 220 × 125 × 22 mm

🌐 Interfaces & Ports

• 7 × Gigabit Ethernet Ports (PoE-Out)

• 1 × Gigabit Ethernet Port (PoE-In)

• 1 × 2.5G SFP+ Port – High-speed fiber connectivity

• 1 × USB 3.0 Port – For LTE modems, storage, etc.

• 1 × RJ45 Serial Console Port

⚡ Powering & PoE Features

• PoE-Out (Ports 1–7):

  • Supports Passive PoE, 802.3af/at (auto-sensing)

  • Max output per port: up to 1A

  • Total PoE budget: 130W (depending on PSU used)

• PoE-In on Port 8:

  • Passive PoE or 802.3af/at (21–57V input range)

• DC Jack Input: 24–57V supported

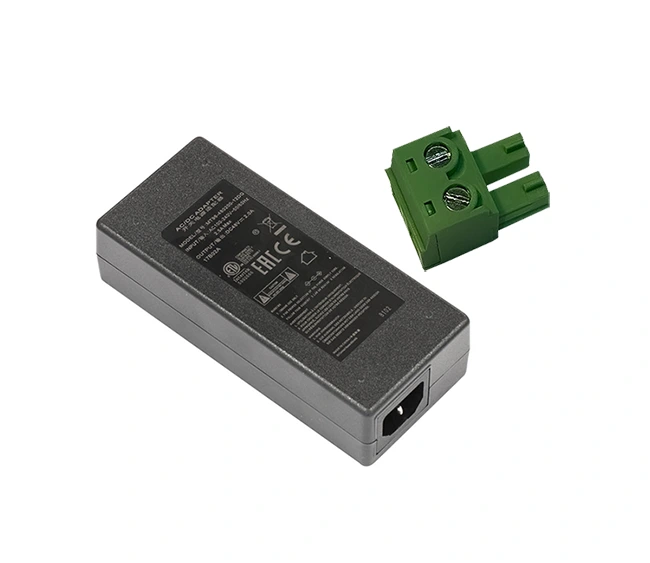

• 2-Pin Terminal Block: Alternate power input

• Max Power Consumption:

  • 150W with PoE-out

  • ~20W without PoE load

⚠️ Note: Power supply not included. Use a high-wattage PSU (e.g. 24V 5A or 48V 3A) to fully utilize PoE-out capabilities.

🧠 RouterOS L5 Feature Set

With RouterOS Level 5, unlock advanced network management tools:

• Layer 3 dynamic routing (OSPF, BGP, MPLS)

• Firewall/NAT & bandwidth shaping

• VPN (WireGuard, IPsec, L2TP, OpenVPN, SSTP)

• VLAN, bonding, bridge, VRRP, CAPsMAN

• Network monitoring, scripting, SNMP, and more

🌍 Deployment Scenarios

• Ideal for:

  • Wireless ISPs

  • Edge routers

  • Network distribution with PoE-powered APs or cameras

• Silent fanless cooling – Perfect for office or home environments

• Mountable: Use optional accessories to fit two units side-by-side in a 1U rack

🏆 Why Choose RB5009UPr+S+IN?

✅ Quad-core power & 1 GB RAM
✅ Full-size PoE-out on 7 ports (802.3af/at + Passive)
✅ 2.5G SFP+ uplink port
✅ Multiple power inputs for redundancy
✅ USB 3.0 & RouterOS L5 license
✅ Compact, fanless, and metal-housed

📦 What’s in the Box?

• RB5009UPr+S+IN Router

• Quick Start Guide

• Power supply not included
