MikroTik L22UGS‑5HaxD2HaxD‑15S – mANTBox ax 15s

The MikroTik L22UGS‑5HaxD2HaxD‑15S, also known as mANTBox ax 15s, is a high-performance outdoor wireless router featuring dual-band Wi‑Fi 6, a built-in sector antenna, and rugged IP-rated housing. It’s ideal for point-to-multipoint base stations, wireless ISPs, and demanding outdoor deployments.

General & Hardware

• Product Code: L22UGS-5HaxD2HaxD-15S
• Architecture: ARM 64-bit
• CPU: Dual-core Qualcomm IPQ-5010 @ 800 MHz
• RAM: 256 MB DDR3L
• Storage: 128 MB NAND
• Operating System: RouterOS v7 with License Level 4
• MTBF: Approx. 200,000 hours at 25°C
• Operating Temperature: –40°C to +70°C
• Cooling: Passive (fanless)
• Enclosure: Outdoor-grade, weatherproof design

Wireless

• Wireless Standards: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• 2.4 GHz Band: Dual-chain, up to 574 Mbps, 12 dBi sector antenna
• 5 GHz Band: Dual-chain, up to 2400 Mbps, 15 dBi sector antenna
• MIMO: 2×2 on both bands
• Wi-Fi Security: WPA3, WPA2, WPA, MFP (Management Frame Protection)
• Features: Target Wake Time, MU-MIMO, Beamforming

Interfaces

• Ethernet: 1x 10/100/1000 Mbps Gigabit Ethernet port with PoE-in
• SFP: 1x 1.25G SFP cage (supports up to 2.5 Gbps)
• USB: 1x USB Type-A 2.0 (up to 1.5 A max current)

Power

• Power Options: DC jack (12–28 V) and Passive PoE-in (18–28 V)
• Max Power Consumption: Up to 21 W
• Typical Power Usage: 11 W

Monitoring & Extra Features

• Sensors: PCB temperature and voltage monitoring
• Beeper: Integrated beeper for device alerts

Mounting & Accessories

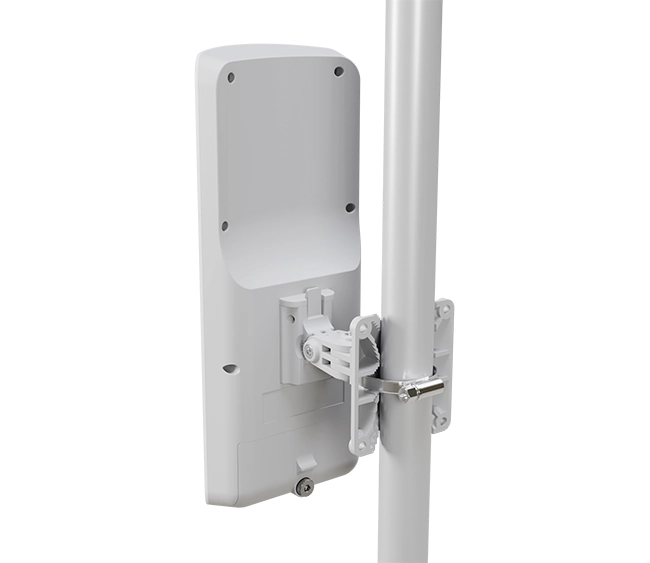

• Mounting: Sector pole or wall-mount ready (quickMOUNT Pro included)
• Included Accessories: Gigabit PoE injector, 24 V 1.2 A power adapter, mounting hardware

Meta Description

MikroTik L22UGS‑5HaxD2HaxD‑15S mANTBox ax 15s is a rugged outdoor Wi‑Fi 6 router with built-in sector antennas, dual-band 2×2 MIMO, 1G Ethernet, 2.5G SFP, and RouterOS v7—perfect for long-range wireless base station deployments.
