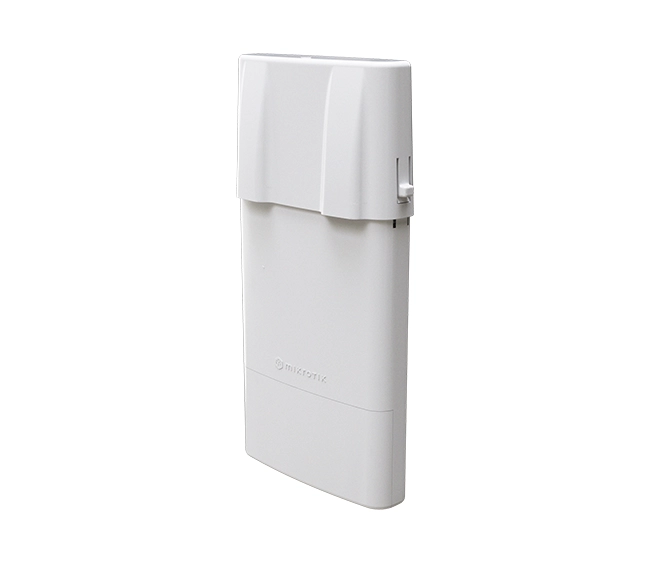

MikroTik L11UG‑5HaxD‑NB – NetBox 5 ax Wi‑Fi 6 Outdoor RouterBoard

The MikroTik L11UG‑5HaxD‑NB – NetBox 5 ax Wi‑Fi 6 is a weatherproof outdoor Wi‑Fi 6 board ideal for custom CPE/AP builds. Powered by a dual‑core Qualcomm IPQ‑5010 CPU, it delivers robust performance in the 5 GHz band with versatile external antenna options and dual power inputs, making it a great choice for tailored wireless deployments.

General

• Model: L11UG‑5HaxD‑NB (NetBox 5 ax)
• Series: RouterBOARD L‑series Outdoor Wi‑Fi 6 board
• CPU: Dual‑core IPQ‑5010 @ 800 MHz
• RAM: 256 MB DDR
• Storage: 128 MB NAND
• OS: RouterOS v7 (License Level 4)
• Operating Temperature: –40 °C to +70 °C

Wireless

• Frequency: 5 GHz band
• Standards: Wi‑Fi 6 (802.11ax), dual‑chain
• Max Rate: Up to 2.4 Gbps
• Antenna Connectors: 2× MMCX (RP‑SMA on “NB” model)

Interfaces & Power

• Ethernet: 1× Gigabit RJ45 with PoE‑in (18–28 V passive)
• USB: 1× USB‑A 2.0 (up to 1.5 A)
• Power Options: Passive PoE‑in or 12–28 V DC jack
• Power Use: ~6 W idle, up to 15 W peak

Build & Features

• Cooling: Passive, fanless design
• Sensors & Alerts: Onboard voltage and PCB temperature sensors, plus a built‑in beeper
• Certifications: CE, FCC, IC, EAC, RoHS
• Enclosure: Rugged outdoor housing, pole/tower mounting hardware included

Use Cases

• Custom outdoor access points or Wi‑Fi 6 CPE units
• Long-range point-to-point links with external antennas
• Outdoor automation and remote monitoring
• Pop-up/temporary Wi‑Fi 6 networks in public spaces

Meta Description

MikroTik L11UG‑5HaxD‑NB – NetBox 5 ax Wi‑Fi 6 is a rugged outdoor Wi‑Fi 6 board featuring dual-core ARM CPU, gigabit PoE-in, external antenna connectors, and industrial-grade housing—ideal for custom CPE/AP builds and long-range 5 GHz deployments.

Datasheet
