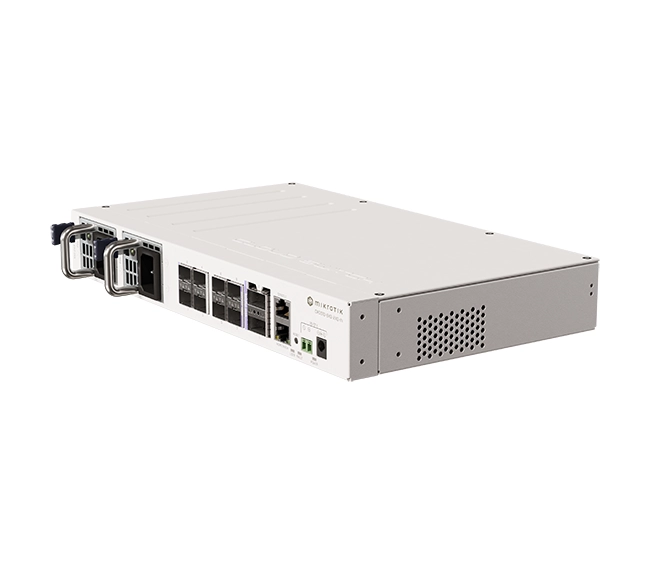

The MikroTik CRS510-8XS-2XQ-IN is a high-performance Layer 3 cloud switch designed for data centers, ISPs, and enterprise backbones requiring compact, high-bandwidth switching. With 8× 10G SFP+ ports and 2× 40G QSFP+ ports, it provides up to 200 Gbps total switching capacity, housed in a desktop-sized, actively cooled chassis.

Featuring dual boot support for RouterOS and SwOS, it offers flexibility between full Layer 3 routing or simple Layer 2 switching, ideal for edge aggregation or core networking setups.

Key Specifications

General

• Model: CRS510-8XS-2XQ-IN
• Series: Cloud Router Switch (CRS)
• Form Factor: Desktop / Compact chassis
• Operating System: Dual boot – RouterOS (Level 5) and SwOS
• Use Case: Datacenter edge, aggregation switch, ISP core, 10G/40G networks

Hardware

• CPU: ARM 64-bit, 4-core AL52400 (1.8 GHz)
• RAM: 1 GB DDR4
• Storage: 128 MB NAND
• Switch Chipset: Marvell Prestera DX8510
• Cooling: Active cooling with dual internal fans

Ports

• 8 × 10G SFP+ Ports
• 2 × 40G QSFP+ Ports
• 1 × Gigabit Ethernet Port (Management only)
• 1 × USB Type-A Port
• 1 × RJ45 Serial Console Port

Performance

• Switching Capacity: 200 Gbps
• Forwarding Rate: 100 Mpps
• Latency: Ultra-low for high-performance networks
• Full Duplex: Line-rate performance across all ports

Power & Environmental

• Power Input:
  • 2 × Hot-Swappable DC Power Supplies (Included)
  • Supports 24V–57V DC via 2-pin or DC jack
• Power Redundancy: Yes, dual-input supported
• Power Consumption: Max ~70W (with full load)
• Cooling: 2 × Smart Fans (automatic speed control)
• Operating Temperature: -20°C to 60°C

Software Features

• RouterOS:
  • Static routing, VLAN, ACLs, firewall, DHCP, NAT, scripting
  • Layer 3 functionality for advanced network segmentation
• SwOS:
  • Lightweight, browser-based switch OS
  • VLAN tagging, port isolation, monitoring
• Dual Boot Support: Choose RouterOS for rich features or SwOS for simplicity

Physical Specifications

• Dimensions: 320 × 185 × 44 mm
• Weight: Approx. 1.75 kg
• Chassis: All-metal with desktop or rack-shelf placement
• Mounting: Desktop or custom rack shelf (no 19″ rack ears included)

Package Contents

• 1 × CRS510-8XS-2XQ-IN Switch
• 2 × Hot-Swap Power Supplies
• 1 × Power Cable
• 1 × User Guide

Use Cases

• Aggregation switch for 10G/40G access layers
• Data center top-of-rack or distribution switch
• ISP backbone or IX peering edge
• Compact core switch for campus networks

Meta Description

MikroTik CRS510-8XS-2XQ-IN is a compact, high-speed Layer 3 switch with 8× 10G SFP+ and 2× 40G QSFP+ ports, dual hot-swap power, and 200 Gbps throughput—ideal for data centers, ISPs, and enterprise core networks.
