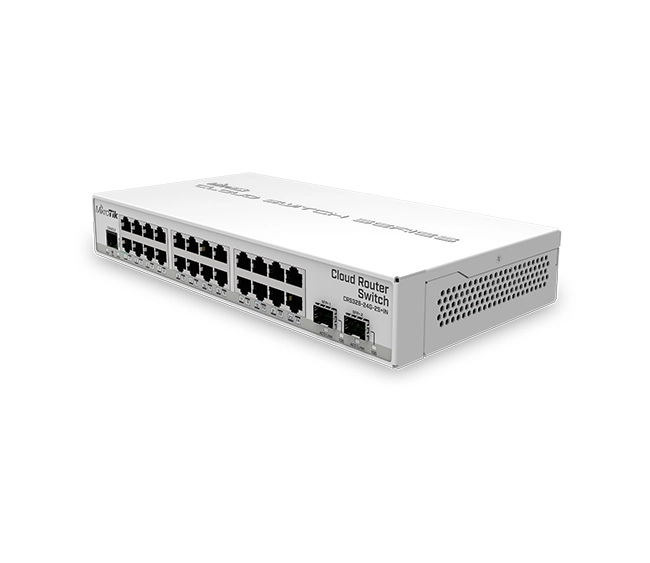

MikroTik CRS326‑24G‑ 2S+IN dual‑boot 10G Switch

MikroTik CRS326‑24G‑2S+IN dual‑boot 10G Switch is a fanless dual-boot smart switch with 24 Gigabit ports, 2×10G SFP+ uplinks, VLAN/ACL support, passive PoE or DC power, ~44 Gbps throughput—ideal for home labs and small offices.

Here are the detailed specifications for the MikroTik CRS326‑24G‑2S+IN dual‑boot 10G Switch

🧠 Core Hardware

• Product Code: CRS326‑24G‑2S+IN
• CPU: Marvell 98DX3236 (ARM 32-bit), single‑core @ 800 MHz
• RAM: 512 MB DDR3
• Storage: 16 MB flash
• MTBF: ~200,000 hours @ 25 °C

🔌 Connectivity

• Ethernet: 24 × 10/100/1000 Mbps RJ45
• Fiber/Uplink: 2 × SFP+ cages (supports 1.25 G SFP and 10 G SFP+ modules)
• Console Port: RJ45 serial

⚙️ Operating System & Licensing

• Dual Boot: SwOS or RouterOS (v7)
• License Level: L5

⚡ Power & Thermal

• Power Inputs:
  • DC jack (10–30 V)
  • Passive PoE‑in on Ether1 (10–30 V)
• Max Power Consumption: ~21 W
• Cooling: Fanless (passive thermal)

📶 Switching Performance

• Throughput: ~44 Gbps non-blocking L1/L2
• Packet Forwarding: ~65k pps @ 64 B; ~3.6k pps @ 1518 B
• MAC Table: 16K entries; VLAN support (up to 4K)
• L2 Features: Port forwarding, MAC filtering, VLANs, mirroring, bandwidth limiting, header editing, STP, ACLs, SNMP

🌡 Physical & Environmental

• Dimensions: 285 × 144 × 44 mm (desktop case)
• Operating Temp: –40 °C to +60 °C (tested)
• Certifications: CE, EAC, RoHS; IP20 (indoor)

📦 Included Accessories

• 24 V 1.2 A power adapter (DC jack)

Datasheet
