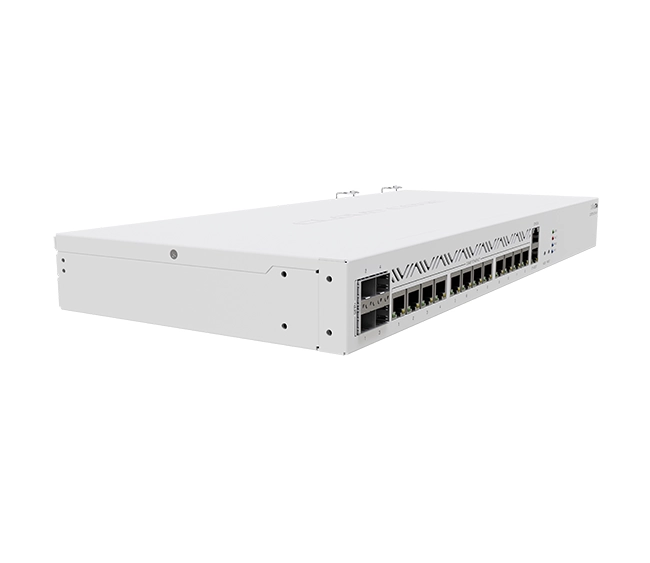

MikroTik CCR2116-12G-4S+ Cloud Core Router

Powerful MikroTik CCR2116-12G-4S+ router with 16-core 2GHz CPU, 16GB RAM, 4×10G SFP+, 13×Gigabit LAN, M.2 SSD slot, dual PSU, and RouterOS L6 – ideal for high-performance networking.

Here are the detailed specifications for the CCR2116-12G-4S+ Cloud Core Router from MikroTik:

📦 General

• Product Code: CCR2116‑12G‑4S+
• Dimensions: 443 × 199 × 44 mm (1U rackmount)
• Cooling: Four fans
• Operating Temperature: –20 °C to +60 °C
• MTBF: ~200 ,000 hours at 25 °C

🧠 CPU & Memory

• CPU: Amazon Annapurna Labs Alpine v3 AL73400 (ARM 64‑bit)
• Cores/Clock: 16 cores @ 2 GHz each
• RAM: 16 GB DDR4
• Storage: 128 MB NAND flash

🔌 Ports & Connectivity

• 10 Gbps: 4 × SFP+ (hosted via Marvell 98DX3255 switch chip)
• 1 Gbps: 12 × Ethernet through switch chip + 1 × CPU‑direct management port (total 13)
• Peripherals:
  • 1 × RJ‑45 serial console
  • 1 × M.2 PCIe slot (supports up to 8 TB SSD)

⚡ Power & Efficiency

• Power Supplies: Dual-redundant, internal
• AC Input: 100–240 VAC, 47–63 Hz
• Power Draw: 60 W (idle/no attachments), up to 72–83 W under full load

🧩 Routing & Hardware Features

• Switch Chip: Marvell 98DX3255 (supports full-duplex connections for port groups)
• RouterOS License: Level 6, bundled with RouterOS v7
• Hardware Offloading: Layer 3 offload support (significant for BGP, NAT, firewall rules, etc.)
• IPsec Acceleration: Yes
• Monitoring: CPU/PCB temperature monitoring and voltage sensors; includes mode button

✅ Certifications & Accessories

• Certifications: CE, FCC, EAC, RoHS
• Included:
  • 2 × IEC power cords
  • White rackmount bracket
  • K‑57 mounting kit

Summary

The CCR2116-12G-4S+ is MikroTik’s top-tier 1U rackmount router, ideal for ISPs, data centers, and enterprises requiring true 10 Gbps edge/core performance. It delivers:

• High-throughput routing and hardware offloading
• 16‑core 2 GHz ARM CPU with 16 GB RAM
• 4 × 10 Gbps and 13 × 1 Gbps ports
• Dual‑redundant power and robust monitoring
• Expandable storage via M.2 PCIe
