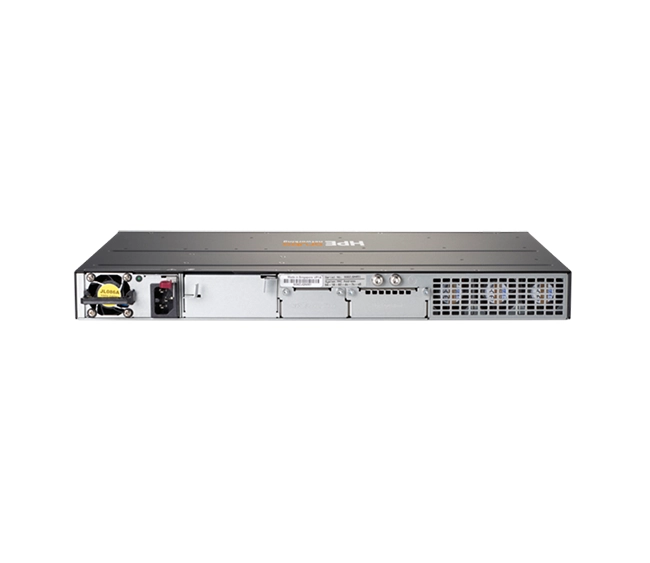

The HPE Aruba Networking 2930M 48G PoE+ 1‑slot Switch is a robust access-layer switch combining 48 Gigabit PoE+ ports with a modular uplink slot. Designed for enterprise campus and edge deployments, it supports powerful PoE budgets, optional fiber connections, full Layer 2/3 capabilities, stacking, and integration with Aruba’s management ecosystem.

Detailed Specifications

Model & Architecture

• Product line: Aruba 2930M series
• Fixed access module: 48 PoE+ capable ports
• One modular slot for uplink or expansion (10G / 40G)
• Stackability: supports VSF (Virtual Switching Framework) for up to 10 switches

Ports & Interfaces

• 48 × RJ-45 10/100/1000 Mbps ports with PoE+ (IEEE 802.3at)
• Uplink slot: accepts module(s) for 10G or 40G connectivity
• Console / management ports: serial / USB for local administration
• Optional combo or SFP slots on certain variants

Power & PoE Capabilities

• High total PoE+ power budget (in many configurations, up to ~1,440 W with dual PSUs)
• Supports per-port up to 30 W (negotiated)
• Intelligent PoE features: scheduling, priorities, allocation limits
• Support for redundant power supply modules (in supported builds)

Switching & Performance

• Switching fabric: 176 Gbps
• Forwarding rate: ~112 Mpps
• Latency: low, optimized for burst and sustained traffic
• Jumbo frames: Up to 9,220 bytes
• Buffer memory: sufficient to handle congestion across ports

Layer 2 / Layer 3 Features

• Layer 2: VLANs, Spanning Tree (STP / RSTP / MSTP), Link Aggregation (LACP), IGMP Snooping
• Layer 3: Static routing, RIP, Access OSPF
• IPv6: Full dual-stack support
• Security & Control: ACLs (L2–L4), 802.1X port access, DHCP Snooping, IP Source Guard
• Advanced features: dynamic segmentation, QoS, policy-based routing

Management, Stacking & Automation

• OS: Aruba’s integrated ProVision / 2930M software stack
• Management: CLI (SSH / console), Web UI, SNMP v2/v3, REST APIs
• Automation: Zero Touch Provisioning (ZTP), scripting, and template deployment
• Telemetry & monitoring: sFlow, RMON, syslog, event alerts
• Stack management: Single logical switch via VSF

Physical & Environmental

• Rack form: 1U switch, standard 19-inch width
• Cooling: Internal fans with front-to-back airflow
• Operating temperature: 0 °C to 45 °C (commercial environment)
• Power input: Internal AC module (with modular PSU support in advanced variants)
• Dimensions & weight: Consistent with enterprise access switches

Key Features

• 48 Gigabit PoE+ ports with modular uplink slot (10G / 40G)
• Strong PoE budget, flexible power allocation, and redundancy support
• Full Layer 2 + Layer 3 routing with IPv6 and dynamic features
• Scalable via VSF stacking (up to 10 units)
• Advanced security, QoS, and automation capabilities
• Ideal for campus edge, wireless aggregation, or converged access layers

Meta Description

The HPE Aruba 2930M 48G PoE+ 1-slot switch features 48 PoE+ Gigabit ports, a modular uplink slot, 176 Gbps switching, full Layer 3 routing, VSF stacking, and enterprise-grade management—perfect for high-demand access and edge deployments.
