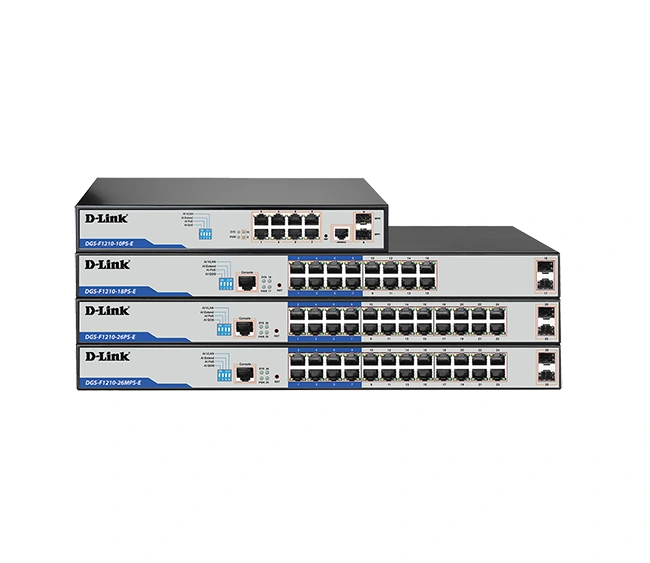

D-Link 18-Port Gigabit Smart Managed PoE+ Switch (DGS-F1210-18PS-E)

Here are the detailed specifications for the D-Link DGS-F1210-18PS-E 18-Port Layer 2 Gigabit Managed Long Range PoE+ Surveillance Switch:

📘 D-Link DGS-F1210-18PS-E – 18-Port Gigabit Smart Managed PoE+ Switch

🔌 Hardware Overview

• Ports:
  • 16 × 10/100/1000 Mbps PoE+ RJ45 ports
  • 2 × Gigabit SFP uplink ports
• Switching Capacity: 36 Gbps
• Forwarding Rate: 23.8 Mpps
• MAC Address Table: 8K entries
• Packet Buffer Size: 4.1 Mbits
• PoE Standards: IEEE 802.3af/at
• PoE Budget: Up to 150W total
• Long Reach PoE: Supports up to 250m on ports 1–8 with Extend mode enabled
• Lightning Protection: 6kV surge protection

⚙️ Software & Management Features

• Management Interfaces:
  • Web-based GUI (HTTP/HTTPS)
  • Command Line Interface (CLI) via Telnet/SSH
  • SNMP v1/v2c/v3
• VLAN Support:
  • 802.1Q VLAN
  • MAC VLAN
  • IP VLAN
  • Voice VLAN
  • Supports up to 4K VLANs
• Quality of Service (QoS):
  • 8 queues per port
  • 802.1p CoS, DSCP, SP, WRR, WFQ scheduling
• Security Features:
  • Access Control Lists (ACLs)
  • Port Security
  • 802.1X Authentication
  • IP-MAC-Port Binding
  • DoS Protection
  • DHCP Snooping
  • SSL, SSH, HTTPS support
• Layer 2 Features:
  • Spanning Tree Protocol (STP), Rapid STP (RSTP), Multiple STP (MSTP)
  • Link Aggregation (Static and LACP)
  • IGMP Snooping v1/v2
  • Loopback Detection
  • Port Mirroring
  • Storm Control (Broadcast/Multicast/Unknown Unicast)
• IPv6 Support:
  • IPv6 Ping, Traceroute, Telnet, SSH
  • IPv6 SNMP, LLDP
  • IPv6 DHCP Client

🌿 Energy Efficiency

• Energy-Efficient Ethernet (EEE): Compliant with IEEE 802.3az
• Power Saving Features:
  • Link status detection
  • LED shut-off
  • Port shut-off
  • System hibernation
• Time-Based PoE: Schedule PoE power delivery

📏 Physical & Environmental Specifications

• Dimensions: 440 × 180 × 44 mm
• Weight: 2.3 kg
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Storage Humidity: 10% to 95% RH
• Power Input: 100-240 VAC, 50-60 Hz
• Maximum Power Consumption: 150W(D-Link)

📦 Package Contents

• DGS-F1210-18PS-E Switch
• Power Adapter
• User Manual
• Rack Mount Kit
