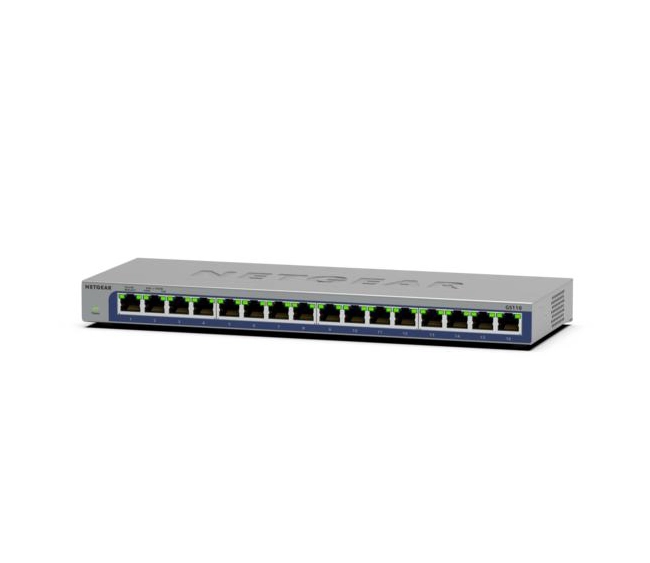

The Netgear GS116-300UKS 16-Port Gigabit Unmanaged Desktop Switch delivers reliable high-speed networking with simple plug-and-play operation. Designed for small to medium-sized businesses, home offices, and workgroups, it offers 16 Gigabit Ethernet ports in a durable fanless metal housing for silent performance.

With energy-efficient technology and a non-blocking switching architecture, the GS116 ensures smooth data transfers and consistent connectivity across multiple devices.

Ports & Connectivity

• Ports: 16 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet ports
• Auto MDI/MDIX: Eliminates the need for crossover cables
• Auto Negotiation: Detects link speed and duplex mode automatically
• Standards Supported: IEEE 802.3i (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3x (Flow Control)

Performance

• Switching Capacity: 32 Gbps (non-blocking)
• Forwarding Rate: ~23.8 Mpps (64-byte packets)
• MAC Address Table Size: 8,000 entries
• Jumbo Frame Support: Up to 9 KB

Design & Build

• Housing: Rugged fanless metal case for quiet operation
• Mounting Options: Desktop placement or wall-mountable
• LED Indicators: Link/Activity per port, Power status

Energy Efficiency

• IEEE 802.3az Energy Efficient Ethernet (EEE) support
• Power-saving features automatically adjust based on cable length and idle status

Power

• Power Supply: External power adapter
• Maximum Power Consumption: ~14.4 W

Physical Specifications

• Dimensions (W × D × H): 285 × 102 × 27 mm
• Weight: ~1.05 kg

Warranty

• Netgear Limited Lifetime Warranty (region-dependent)

Key Features

• 16 Gigabit Ethernet ports for fast and reliable wired connectivity
• 32 Gbps switching capacity with non-blocking architecture
• Fanless design ensures silent operation for office or home use
• Energy Efficient Ethernet technology reduces power consumption
• Plug-and-play installation with no configuration needed

Meta Description

Netgear GS116-300UKS 16-Port Gigabit Unmanaged Desktop Switch with 32 Gbps switching capacity, silent fanless design, energy-efficient operation, and durable metal housing—ideal for SMBs and home offices.
